Product Overview

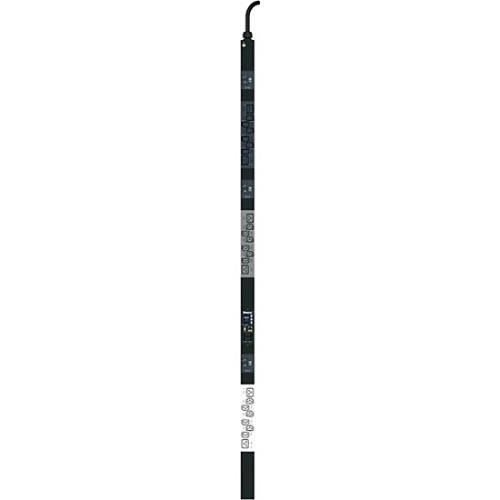

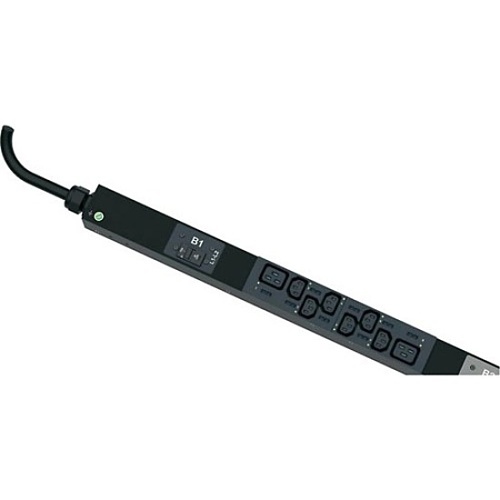

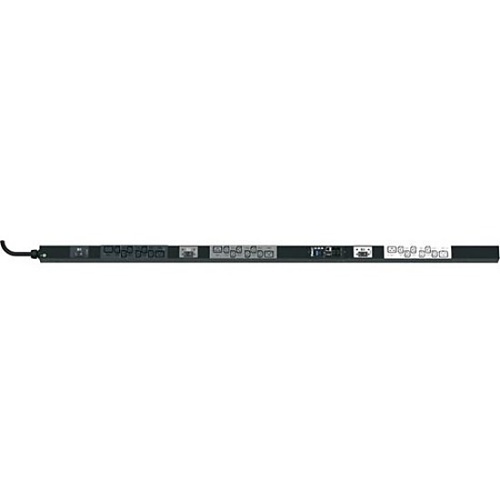

The Panduit P24G02M-RD2A is a vertical PDU featuring 18 C13 and 6 C19 IEC 60320 receptacles, designed to efficiently distribute AC power across multiple servers while balancing the load. Its monitored feature allows remote voltage monitoring for both single and three-phase supplies, enhancing power management. Equipped with a NEMA L15-30P connector, this three-phase device operates at 208V AC input and output, delivering reliable and optimal power for maximum productivity. Upgrade your data center power management with this dependable solution today!
Main Features
- PDU distributes AC power to multiple servers and balances the load on the servers
- with monitored PDU, you can remotely monitor single-or three-phase voltage easily to ensure maximum power supply efficiency
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- Three Phase phase PDU provides optimal power output with added usability
- NEMA L15-30P plug/connector type for efficient connectivity and feasible power output
- 208 V AC input voltage for optimal performance with maximum usability
- 208 V AC output voltage for maximum dependability and added productivity
General Information
Name: Panduit P24G02M-RD2A Vertical Power Distribution Unit, 18-Pack
Category: Panduit, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-4G02MRD2A Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number P24G02M-RD2A Packaged Quantity 1 Product Line SmartZone Product Name SmartZone G5 Intelligent 24-Outlets PDU Product Series MSPO Product Type PDU Sector Data Comm & Networking
Output Voltage 208V AC PDU Type Monitored Phase Three Phase Receptacle Detail 18 x IEC 60320 C13, 6 x IEC 60320 C19 Receptacle Type IEC 60320 C13, IEC 60320 C19
Network (RJ-45) Yes
Depth 2.1" Mounting Orientation Vertical Rack Height 0U Width 2"
Input Current 30A Input Voltage 208V AC Plug/Connector Type NEMA L15-30P
Length 68.9" Mount Type Rack Mount
Limited Warranty 3-Year
Environmentally Friendly Yes
