Panduit CCAL2H3846-X Cable Cleat, Aluminum, 2-Hole Clamp Type
CCAL2H3846-X|P9-AL2H3846X
Panduit CCAL2H3846-X Cable Cleat, Aluminum, 2-Hole Clamp Type
CCAL2H3846-X|P9-AL2H3846X
Panduit
Panduit CCAL2H3846-X Cable Cleat, Aluminum, 2-Hole Clamp Type
CCAL2H3846-X | P9-AL2H3846X
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

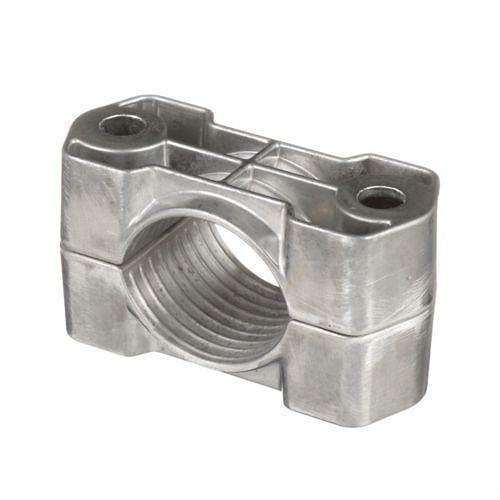

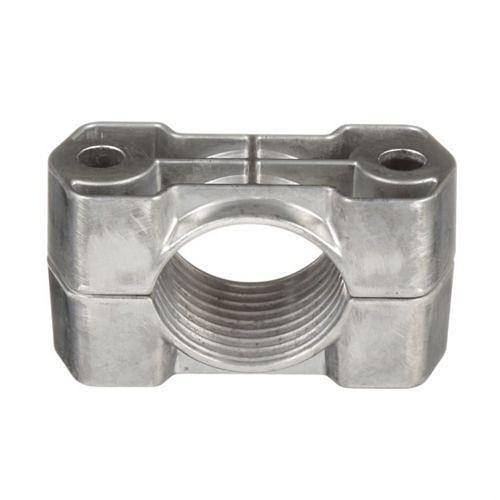

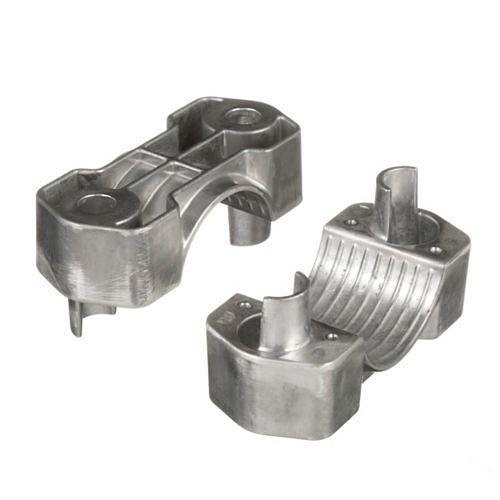

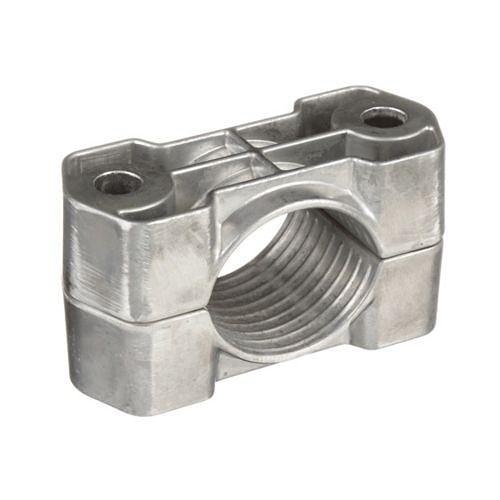

The CCAL2H3846-X Two-Hole Aluminum Cable Cleat is ideal for medium to high short circuit faults in less corrosive environments. The cable cleat is certified to IEC 61914;2015, tested up to 131kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 38-46mm and installs direct to the cable tray rung via fixing holes and user-supplied M10 bolts. Insulating spacers and washers sold separately for protection against galvanic corrosion.
General Information
Name: Panduit CCAL2H3846-X Cable Cleat, Aluminum, 2-Hole Clamp Type
Category: Panduit, Tools & Hardware, Tools, Clips & Clamps
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-AL2H3846X Brand Name Panduit Manufacturer Part Number CCAL2H3846-X
