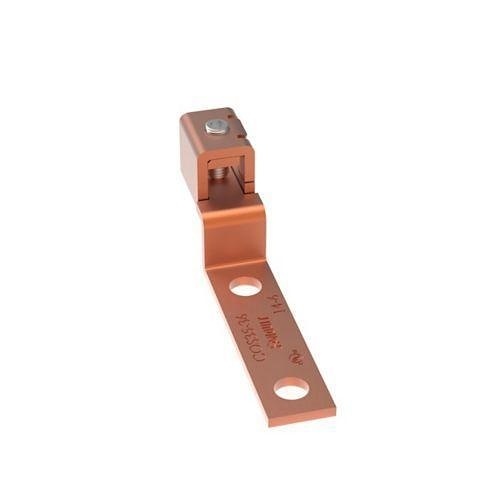

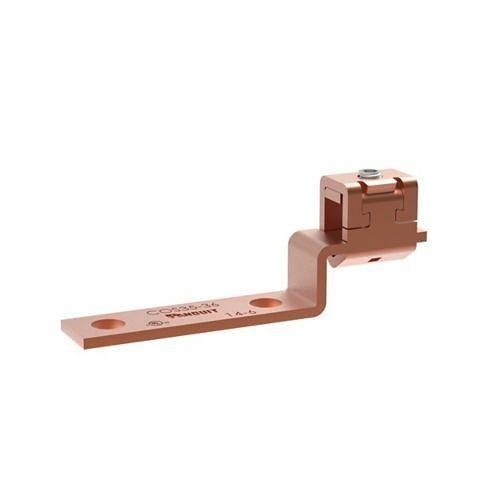

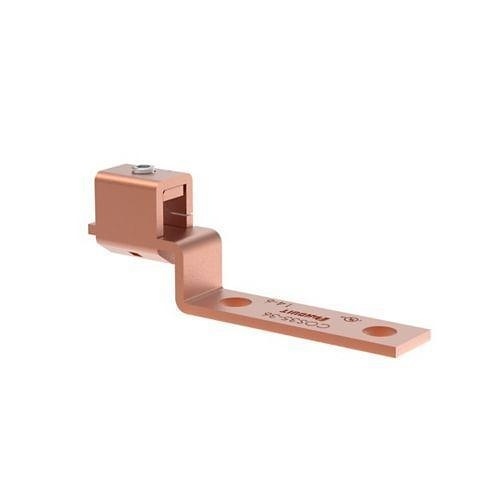

Panduit COS35-36-Q Copper Mechanical Lug, 2 Hole, 1 Barrel
COS35-36-Q | P9-COS3536Q
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The COS35-36-Q Mechanical Connector Lug two-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable electrical contract between conductor and connector. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.
Main Features
- High strength electrolytic copper for premium performance
- Two-hole design for secure connection
- Wide wire range-taking capability
- Plated steel set screw for durable contact
- Uniform clamping force with internal pressure bar
- V-bottom collar for positive contact
General Information
Name: Panduit COS35-36-Q Copper Mechanical Lug, 2 Hole, 1 Barrel
Category: Panduit, Batteries & Power Supplies, Power Management, Grounding & Bonding
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-COS3536Q Brand Name Panduit Manufacturer Part Number COS35-36-Q Product Name Copper Mechanical,2 Hole,Offset, #14-#6, 3/16 Stud Product Type Mechanical Lug
Height 0.55" Width 0.39"
Length 2.23"
