Image of PB-IIR585XR
Bosch

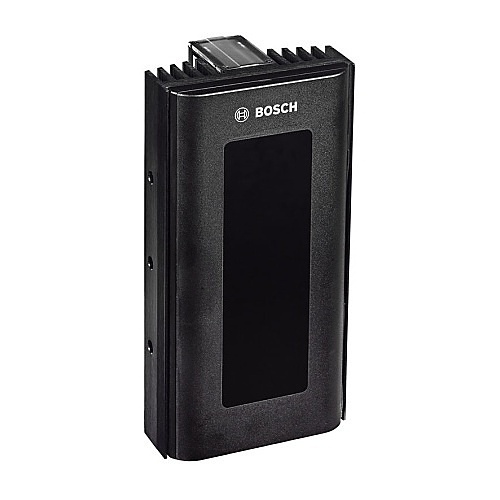

Bosch IIR-50850-XR Series Extra Range IR Illuminator, 850 nm

IIR-50850-XR|PB-IIR585XR
Bosch

Bosch IIR-50850-XR Series Extra Range IR Illuminator, 850 nm

IIR-50850-XR|PB-IIR585XR

Sign In for Dealer Pricing

Become an ADI Customer
Image of PB-IIR585XR
Bosch

Bosch IIR-50850-XR Series Extra Range IR Illuminator, 850 nm

IIR-50850-XR | PB-IIR585XR

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

  • Integrated adjustable photocell
  • Adjustable IR intensity
  • Interchangeable beam pattern diffusers to match beam to camera
  • Telemetry input and photocell output for external switching
  • Self-cleaning lens coating technology
TThe infrared illuminator provides covert or semi-covert lighting for extra long-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates.The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes.The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost effective installations.

System overview

Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.

Main Features

  • Extra Range IR Illuminator, 850 nm
  • Adjustable IR intensity
  • Interchangeable beam pattern diffusers
  • Telemetry input and photocell output
  • Self-cleaning lens coating technology
  • Covert or semi-covert lighting for surveillance
  • Improves night-time imaging
  • Energy efficient operation
  • Compatible with 12-32 VDC or 24 VAC supply
  • Advanced thermal management

General Information

Name: Bosch IIR-50850-XR Series Extra Range IR Illuminator, 850 nm
Category: Bosch, Video Surveillance, Video Accessories, Illuminators
UPC Code:
Country of Origin: . Country of origin is subject to change.
