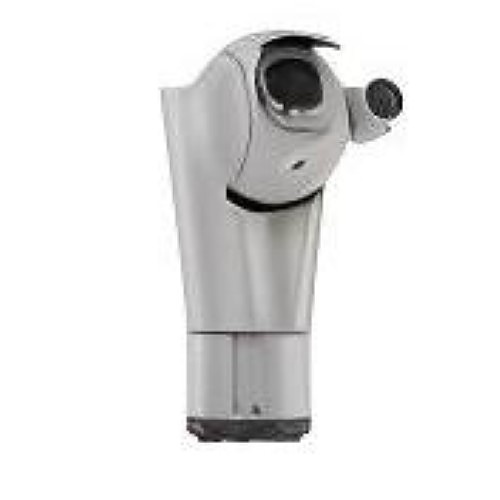

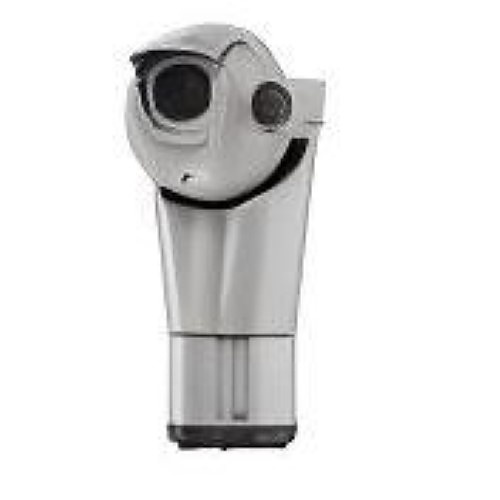

Pelco ESCE1-8X36-RLU 8MP Esprit Compact PTZ Camera, 4.4-88mm Varifocal Lens, 36x Optical Zoom, IP66/67/68
Pelco ESCE1-8X36-RLU 8MP Esprit Compact PTZ Camera, 4.4-88mm Varifocal Lens, 36x Optical Zoom, IP66/67/68
Pelco ESCE1-8X36-RLU 8MP Esprit Compact PTZ Camera, 4.4-88mm Varifocal Lens, 36x Optical Zoom, IP66/67/68
ESCE1-8X36-RLU | PE-ES8X36RLU
Please sign in to view pricing and availability and to add to cart.
Product Overview
The Esprit Compact is a hardened, mission-critical pan-tilt-zoom (PTZ) camera that can withstand the most extreme environmental factors. This security camera is built to withstand most outdoor environments while maintaining continuous clear, high-resolution live and recorded video, with up to 8 MP and 40x zoom. Built for operations that have extreme operational requirements, this camera is ideal for monitoring cities, ports, industrial plants and enterprise facilities. Designed to have superior strength and durability, it is tested to MIL-STD-167-1A and 810G, allowing for extreme shock and vibration tolerance. It also is NEMA TS2 and IP66/67 rated to withstand extreme weather, shock, vibration and humidity. The Esprit Compact is built with Smart Analytics, powered by Motorola Solutions, equipped with ONVIF Profile S, G and T and is NDAA-compliant, allowing for open connectivity with Pelco VideoXpert and leading partner VMS’.
Main Features
- Detects more objects with expanded object classifications and automatically tracks objects in zone for faster, decisive responses
- Captures high-quality image details in scenes with dark and light backgrounds per IEC 62676-5
- IP66/67 rating for resistance from dust and water
- ONVIF Profile S, G and T compliance allows for easy integration with existing ONVIF infrastructures. Integrates with Pelco VideoXpert and other leading video management systems
- Reduce installation times with accessory options such as power supplies, mounting brackets and IR/white light illuminators
- Optimizes compression levels for regions in a scene to help maximize bandwidth savings and keep storage costs down
- IK10 rated for 20 joule impact resistance
- We back our Esprit Compact camera with a 5-year industryleading warranty, with onsite support and 24/7 phone support
General Information
Specifications
ADI Part Number PE-ES8X36RLU Brand Name Pelco by Motorola Solutions Manufacturer Part Number ESCE1-8X36-RLU Product Name ESCE1-8X36-RLU PTZ Camera Product Type Network Camera Weight 15.6lb
Effective Camera Resolution 8MP Field of View 69.7° to 2.2° Horizontal, 42.8° to 1.3° Vertical Maximum Aperture f/3.8 Maximum Frame Rate 30fps Minimum Focal Length 4.4mm Night Vision Yes Optical Zoom 36x Video Formats H.264, H.265, MJPEG
Connectivity Technology Wired Image Sensor Type CMOS Wide Dynamic Range Yes
Maximum Operating Temperature 149°F Minimum Operating Temperature -40°F Operating Humidity 5-95%
Longest Shutter Speed 1/1 Second Minimum Illumination 0.3 lux Shortest Shutter Speed 1/10000 Second
Focal Length 4.4-88 mm Lens Included Yes Maximum Focal Length 88 mm
Color White Durability Dust Resistant, Impact Resistant, Waterproof Height 16"
Input Voltage 24V DC
Diameter 9.45" Mount Type Pedestal mount, Pendant Mount
Storage Type Memory Card
Limited Warranty 5-Year
Environmental Certification RoHS, UL Environmentally Friendly Yes Impact Protection Rating IK10 Indoor/Outdoor Outdoor
