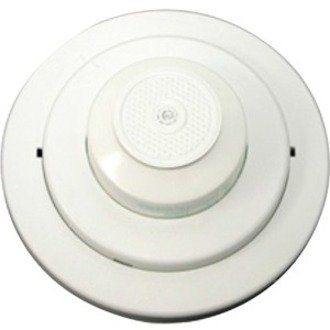

Potter CR-200W THERMOFLEX CR Series Conventional Heat Detector, Fixed/Rate of Rise, Indoor, 200 Degrees
Potter CR-200W THERMOFLEX CR Series Conventional Heat Detector, Fixed/Rate of Rise, Indoor, 200 Degrees
Potter CR-200W THERMOFLEX CR Series Conventional Heat Detector, Fixed/Rate of Rise, Indoor, 200 Degrees
1000141 | PL-CR200
Please sign in to view pricing and availability and to add to cart.
Product Overview
The THERMOFLEX® CF/CR Series standard heat detectors are available in single or multiple circuits with open or closed contact configurations. THERMOFLEX® CF/CR Series detectors are available in 135°F, 165°F, 200°F, and 285°F versions.
THERMOFLEX® CR Series The CR Series detectors are combination Rate-of-Rise and Fixed Temperature. The Rate-of-Rise function allows the detector to operate when the temperature at the detector increases at a rate of 15°F per minute. The Fixed Temperature portion will cause the detector to operate when it reaches the applicable temperature. The Rate-of-Rise portion of the detector is restorable; however the Fixed Temperature portion is non-restorable.
Main Features
- Low profile design
- Dual action (rate of rise/fixed temperature) or fixed temperature
- only
- White plastic housing
- Up to 70' inter detector spacing
- Open or closed contact versions available
- Available in single or multiple circuit versions
- Product includes a 5 year warranty
General Information
Specifications
ADI Part Number PL-CR200 Brand Name Potter Electric Signal, LLC Manufacturer Potter Electric Signal, LLC Manufacturer Part Number 1000141 Product Line Thermoflex Product Model CR-200W Product Name THERMOFLEX CR-200W Fixed Temperature Heat Detector Product Series CR Product Type Fixed Temperature Heat Detector Weight 6.56oz
Color White Depth 5.2" Form Factor Ceiling Mount Height 2"
Input Voltage 28V DC
Limited Warranty 5-Year
