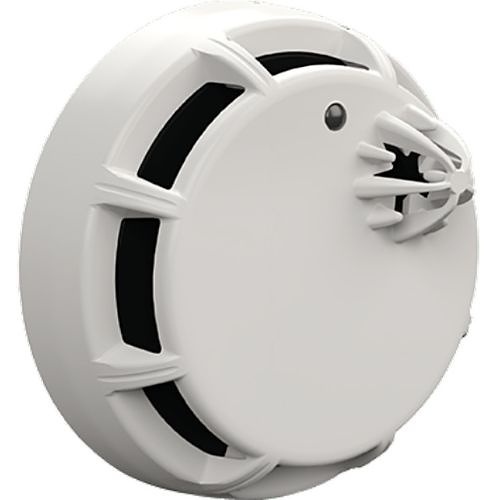

Potter PAD200-PCHD Photoelectric Smoke / Heat / Carbon Monoxide Detector
PAD200-PCHD|PL-PAD200PCH
Potter PAD200-PCHD Photoelectric Smoke / Heat / Carbon Monoxide Detector
PAD200-PCHD|PL-PAD200PCH
Potter Electric Signal, LLC
Potter PAD200-PCHD Photoelectric Smoke / Heat / Carbon Monoxide Detector
PAD200-PCHD | PL-PAD200PCH
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The PAD200-PCHD is a listed Analog Addressable photoelectric smoke sensor, rate of rise and/or fixed temperature heat sensor and carbon monoxide (CO) sensor compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The CO sensing portion utilizes a proven electrochemical sensor for accurate detection of CO gas for life safety applications.
Main Features
- Photoelectric Smoke Detection compliant with UL 268 7th Edition
- Carbon Monoxide (CO) detection compliant with UL 2075
- Heat Detection compliant with UL 268 and UL 521 7th Edition
- Walk Test mode allows for fast easy validation of CO sensor operation
- Low profile, less than 2 inches with the base
- Wide selectable sensitivity range of 1.0 to 3.5%/foot
- Temperature range of 32° F to 115° F
- Selectable Rate of Rise and/or fixed heat detector
- Fixed temperature range of 135° F to 185° F
- Sensor communicates sensitivity to control panel
General Information
Name: Potter PAD200-PCHD Photoelectric Smoke / Heat / Carbon Monoxide Detector
Category: Potter Electric Signal, LLC, Fire, Intrusion, Fire Detection Devices, Life Safety Devices, Carbon Monoxide Detectors, Smoke & CO Detectors, Carbon Monoxide Detectors
UPC Code: 7002170449953
Country of Origin: US. Country of origin is subject to change.
Specifications
ADI Part Number PL-PAD200PCH Brand Name Potter Electric Signal, LLC Manufacturer Potter Electric Signal, LLC Manufacturer Part Number PAD200-PCHD Product Model PAD200-PCHD Product Name Photoelectric Smoke / Heat / Carbon Monoxide Detector Product Type Smoke Sensor Weight 4.2oz
Color White Height 1.94"
Certifications UL2075 Certifications & Standards UL Listed
