Image of QB-PL380
QSC

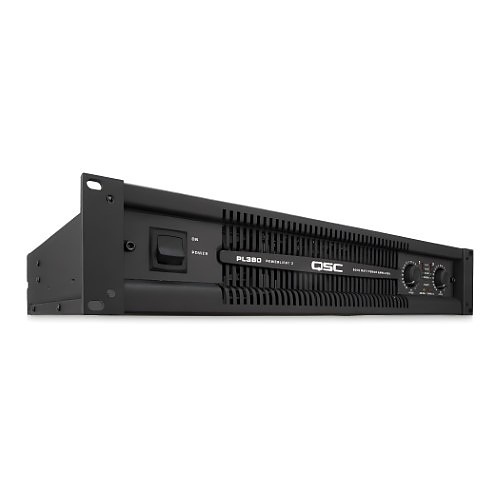

QSC PL380 PowerLight Series Power Amplifier, 8000W

PL380|QB-PL380
QSC

QSC PL380 PowerLight Series Power Amplifier, 8000W

PL380|QB-PL380

Sign In for Dealer Pricing

Become an ADI Customer
Image of QB-PL380
QSC

QSC PL380 PowerLight Series Power Amplifier, 8000W

PL380 | QB-PL380

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The PowerLight 3 PL380 is designed for the most demanding live audio users, whether in touring rigs or fixed installations. The most requested features of the PowerLight 2 series have been upgraded to deliver "the ultimate analog amplifier" , while the QSC Data port ensures full compatibility with advanced digital processing and QSControl.net.

Main Features

  • PowerLight switch-mode power supply for highest efficiency and improved audio performance
  • Flow-through air path and solid aluminum heat sinks for maximum cooling
  • DataPort supports remote network control and monitoring via Q-SYS
  • Detented gain controls with 1-dB steps for precise calibration
  • Removable knobs with lock-out security plate to prevent unauthorized tampering
  • User defeatable clip limiters and selectable low-frequency filter per channel (3 Hz, 30 Hz, or 50 Hz)
  • Three selectable gain structures (26 dB, 32 dB, or 1.2 V)
  • Front and rear panel LEDs indicate status of switch settings at a glance

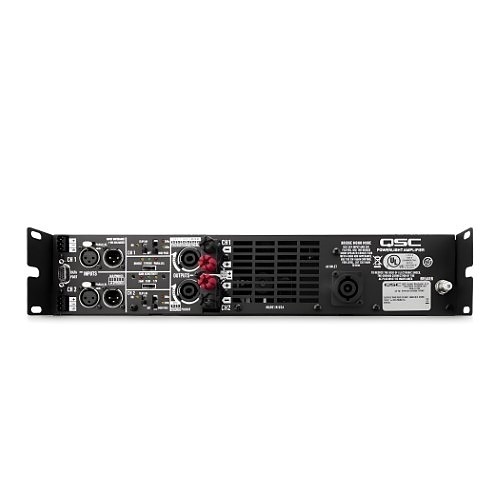

  • Parallel XLR/M and XLR/F connectors for simple loop-through connectivity
  • Neutrik Speakon and "Touch-Proof" binding post outputs

General Information

Name: QSC PL380 PowerLight Series Power Amplifier, 8000W
Category: QSC, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code:
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

User Manual
