Silent Knight 006808 Silent Knight 6808 198-Point Single Loop Addressable Fire Alarm Control System (Replaces 5808)
006808|SK-6808
Silent Knight 006808 Silent Knight 6808 198-Point Single Loop Addressable Fire Alarm Control System (Replaces 5808)
006808|SK-6808
Silent Knight by Honeywell
Silent Knight 006808 Silent Knight 6808 198-Point Single Loop Addressable Fire Alarm Control System (Replaces 5808)
006808 | SK-6808
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

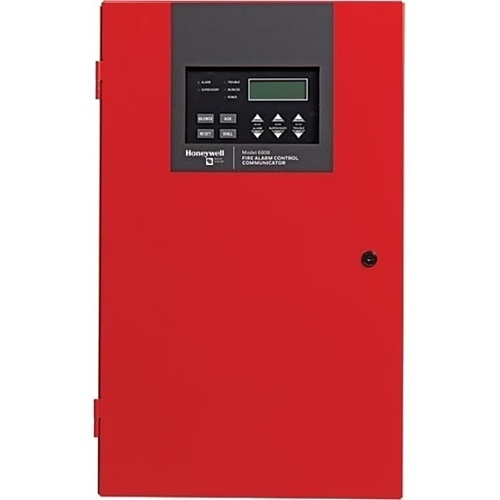

The 6808 is the latest intelligent addressable FACP (Fire Alarm Control Panel) from Silent Knight and is a direct replacement for the 5808 FACP. The 6808 has one SLC (signaling line circuit) loop for connecting addressable detectors, which can support 99 System Sensor® SK sensors and 99 SK modules or 127 Hochiki® SD devices per loop.
Main Features
- Complies with UL 864 10th Edition
- Built-in support for up to 99 IDP/SK detectors and 99 IDP/SK modules or 127 SD SLC devices
- Four Flexput circuits (3 As max) for NAC outputs or auxiliary power
- Selectable strobe synchronization for Amseco®, System Sensor, Wheelock®, and Gentex® devices
- 250 software zones and 250 output groups for flexible design options
- Built-in dual phone line, digital alarm communicator/ transmitter (DACT) with IP and optional cellular technologies
- Four line LCD display with 20 characters per line
- Built-in USB interface for quick and easy programming
- JumpStart® auto programming reduces installation time
- 13 preset notification cadence patterns (including ANSI® 3.41)
General Information
Name: Silent Knight 006808 Silent Knight 6808 198-Point Single Loop Addressable Fire Alarm Control System (Replaces 5808)
Category: Silent Knight by Honeywell, Fire, Fire Control Panels, Fire Alarm Control Panels
UPC Code: 783196014210
Country of Origin: US. Country of origin is subject to change.
Specifications
ADI Part Number SK-6808 Brand Name Silent Knight by Honeywell Manufacturer Honeywell International, Inc Manufacturer Part Number 006808 Product Model 6808 Product Name Addressable Fire Alarm Control Panel Product Type Fire Alarm Control Panel Weight 32lb
Connectivity Technology Wired Number of Relays Supported 2 Panel Control Type Addressable
Display Type LCD
Color Red Depth 3.9" Height 26.4" Width 16.4"
Input Voltage 120V AC
Certifications & Standards - UL Listed
- CSFM:7165-0559:0502
- FDNY:COA# 6246
- FM
- NFPA 13, NFPA 15, NFPA 16, NFPA 70, NFPA 72
Features Built-in Keypad
