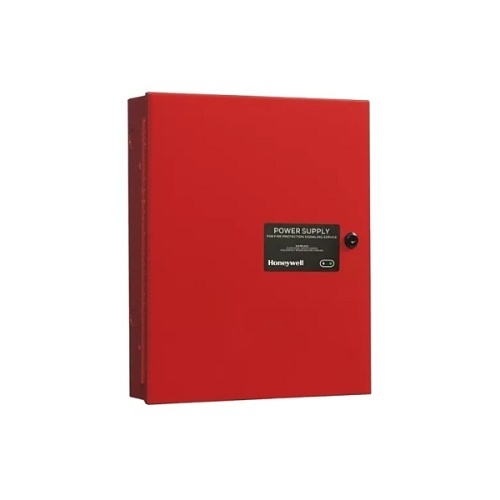

Silent Knight HPF-PS10E Remote Power Supply with Battery Charger, 10A 240VAC
Silent Knight HPF-PS10E Remote Power Supply with Battery Charger, 10A 240VAC
Silent Knight HPF-PS10E Remote Power Supply with Battery Charger, 10A 240VAC
HPF-PS10E | SK-HPFPS10E
Please sign in to view pricing and availability and to add to cart.
Product Overview
The HPF-PS Series is a remote power supply line from Honeywell and is a direct replacement for the HPF24S6/8 and HPFF8. The HPF-PS6(B) is a 6A and the HPF-PS10(B) is a 10A, remote power supplies with battery charger that may be connected to any 12 or 24 volt fire alarm control panel (FACP) or used as a standalone power supply. The HPF-PS Series provides 24VDC power for NACs (notification appliance circuits) configured as either Class B or Class A (requires the ZNAC-PS option card) with multiple sync protocol options. The HPF-PS Series also provides auxiliary power, constant or resettable, suited for detectors, annunciators, door holders, and other fire alarm system peripherals. The HPF-PS Series cabinet can hold two 7AH or 18AH batteries and can charge up to 33AH batteries in a separate cabinet. The HPF-PS6E and HPF-PS10E are models rated for 240V operation.
Main Features
- Optimal for powering four-wire smoke detectors, annunciators, and other system peripherals requiring regulated power
- Optional addressable control, monitor, and relay modules and power-supervision relay (EOLR-1)
- Configurable for ANSI Temporal 3 or Temporal 4 coded output
- UL-Listed NAC synchronization using System Sensor®, Wheelock®, Gentex®, or AMSECO® appliances
- Ability to cascade up to four power supplies
- Two (6 amp model) or three (10 amp model) fully-isolated input/control circuits which can be programmed to any output
- Two Form C normally-closed trouble relays for AC Trouble and General Trouble
- 6 or 10 amp full load output, respectively, with 3 A maximum/circuit
- Individual NAC power and trouble LEDs for diagnostic efficiency
- Trouble history mode for diagnostic support
