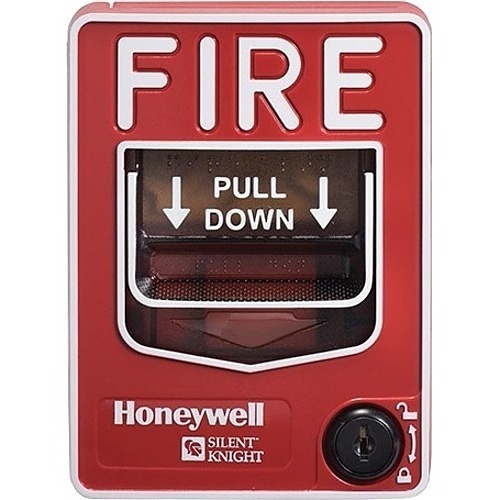

Silent Knight SK-PULL-SA Addressable Single Action Pull Station, Single Pole, SPST, N/O Switch
Silent Knight SK-PULL-SA Addressable Single Action Pull Station, Single Pole, SPST, N/O Switch
Silent Knight SK-PULL-SA Addressable Single Action Pull Station, Single Pole, SPST, N/O Switch
SK-PULL-SA | SK-PULLSA
Please sign in to view pricing and availability and to add to cart.
Product Overview
The SK-PULL-SA is a single action pull station requiring only one motion to activate the station. The SK-PULL-DA is a dual action pull station requiring two motions to active the station. The SK-PULL-SA and SK-PULL-DA are for use with Honeywell Silent Knight Series fire control panel (FACP).
Extremely easy to operate, the SK-PULL-DA and SK-PULL-SA provide a fast and practical means of manually initiating a fire alarm signal. The FACP recognizes each manual pull station by its specific address saving precious seconds in determining the location of an alarm.
INSTALLATION
The SK-PULL-SA and SK-PULL-DA can be surface mounted to an SB-I/O surface back box or semi-flush mounted on a standard single-gang with a minimum depth of 2.13"(5.40 cm) or double gang or 4" (10.61 cm) square electrical box. You can also use the optional (System Sensor® PN BG-TR) trim ring if the station is being semi-flush mounted.
Main Features
- Installer can open station without causing an alarm condition
- Dual-color LED is visible through handle of station
- Key operated test and reset lock using lock plate actuator
- Key matches compatible FACP locks
- Meets ADA requirement for 5 lbs maximum pull force to active
- Meets the Americans with Disabilities Act Accessibility Guidelines (ADAAG) controls and operating mechanisms guidelines (Section 4.1.3[13])
- Shell, door, and handle molded from durable LEXAN
- Reliable analog communications for trouble-free operation
- Braille text on station handle
- Rotary address switches for fast installation
General Information
Specifications
ADI Part Number SK-PULLSA Brand Name Silent Knight by Honeywell Manufacturer Honeywell International, Inc Manufacturer Part Number SK-PULL-SA Product Model SK-PULL-SA Product Name SK-PULL-SA Pull Station Product Series SK-Pull Product Type Pull Station
Material Lexan, PC Pull Station Type Single Action
Maximum Operating Temperature 120°F (48.9°C) Minimum Operating Temperature 32°F (0°C)
Application/Usage Fire Alarm Depth 1.5" Durability Durable Height 5.5" Width 4"
Input Voltage 15V DC, 32V DC
Print/Message Fire, Pull Down
Certifications & Standards MEA Listed, UL 38 CSFM Listed, UL Listed Compatibility Silent Knight Fire Alarm Control Panels: 6820 6820EVS 6808 6700 5700 5808 5820XL 5820XL-EVS Features Key Lock, Key Reset, LED Indicator, Single Pole
