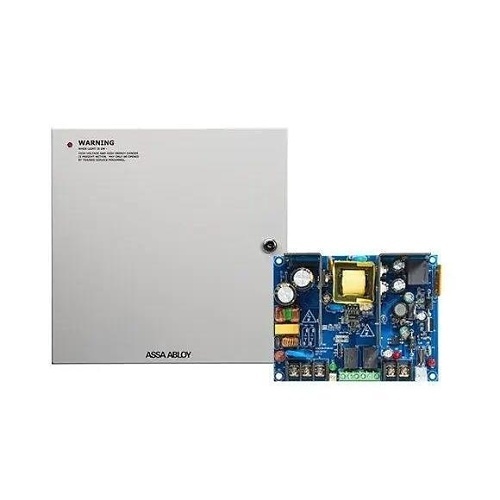

Securitron AQD2B 2A Dual Voltage Power Supply Board Only
AQD2B|SN-AQD2B
Securitron AQD2B 2A Dual Voltage Power Supply Board Only
AQD2B|SN-AQD2B
Securitron by ASSA ABLOY
Securitron AQD2B 2A Dual Voltage Power Supply Board Only
AQD2B | SN-AQD2B
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Securitron AQD2 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 2 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.
Main Features
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 85% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or over voltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
General Information
Name: Securitron AQD2B 2A Dual Voltage Power Supply Board Only
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 784607046486
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-AQD2B Brand Name Securitron by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number AQD2B Product Model AQD2B Product Name Securitron AQD2B 2 Amp, Dual Voltage Power Supply Board Product Type Power Supply
Input Voltage 115V AC, 230V AC Output Current 2A
Limited Warranty Lifetime
Country of Origin US Environmental Certification UL Environmentally Friendly Yes
