Image of SN-AQD48C1
Securitron by ASSA ABLOY

Securitron AQD4-8C1 Amp Dual Voltage Power Supply with Enclosure, Outputs, Amp PTC Polyswitch

AQD4-8C1 | SN-AQD48C1

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

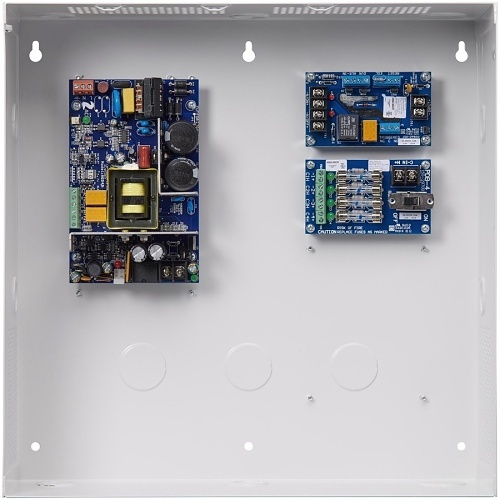

The Securitron AQD4 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 4 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.

Main Features

  • Circuit breaker protects against overcurrent and reverse battery faults
  • All combinations of AQ power supplies and distribution boards are UL listed
  • Dedicated battery charging circuit prevents overvoltage on locking devices
  • Up to 89% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
  • Dual voltage 12 or 24 VDC field selectable continuous output
  • Thermal shutdown protection with auto restart
  • Available with a single relay fire trigger or individually triggered relayed outputs
  • Tolerates brownout or overvoltage input ± 15% of nominal voltage
  • Low battery cutoff at 9V at 12V or 18V at 24V

General Information

Name: Securitron AQD4-8C1 Amp Dual Voltage Power Supply with Enclosure, Outputs, Amp PTC Polyswitch
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 784607047568
Country of Origin: United States. Country of origin is subject to change.
