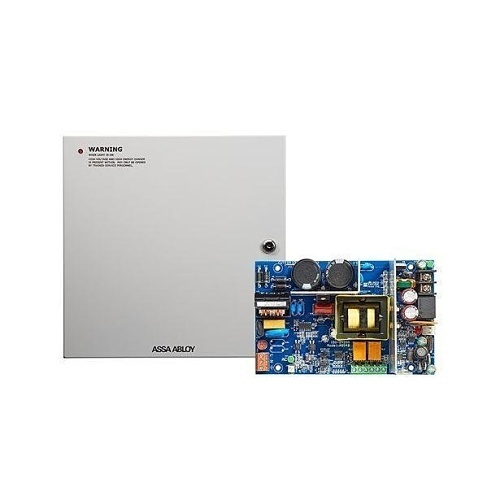

Securitron AQD4-8C2 AQD4 Series 4A Dual Voltage Power Supply with Enclosure, 8 Outputs, 2A PTC Polyswitch
AQD4-8C2|SN-AQD48C2
Securitron AQD4-8C2 AQD4 Series 4A Dual Voltage Power Supply with Enclosure, 8 Outputs, 2A PTC Polyswitch
AQD4-8C2|SN-AQD48C2
Securitron by ASSA ABLOY
Securitron AQD4-8C2 AQD4 Series 4A Dual Voltage Power Supply with Enclosure, 8 Outputs, 2A PTC Polyswitch
AQD4-8C2 | SN-AQD48C2
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Securitron AQD4 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 4 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.
Main Features
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 89% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or over voltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against over current and reverse battery faults
- Dedicated battery charging circuit prevents over voltage on locking devices
- Low battery cutoff at 9V at 12V or 18V at 24V
- Available with a single relay fire trigger or individually triggered relayed outputs
General Information
Name: Securitron AQD4-8C2 AQD4 Series 4A Dual Voltage Power Supply with Enclosure, 8 Outputs, 2A PTC Polyswitch
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 784607047711
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-AQD48C2 Brand Name Securitron by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number AQD4-8C2 Product Model AQD4-8C2 Product Name Securitron AQD4-8C2 4 Amp, Dual Voltage Power Supply with Enclosure, 8 Outputs, 2 Amp PTC Polyswitch Product Series AQD4 Product Type Power Supply
Input Voltage 115V AC, 230V AC Output Current 2A
Limited Warranty Lifetime
Country of Origin US Environmental Certification UL Environmentally Friendly Yes
