Product Overview

6 Amp, Dual Voltage

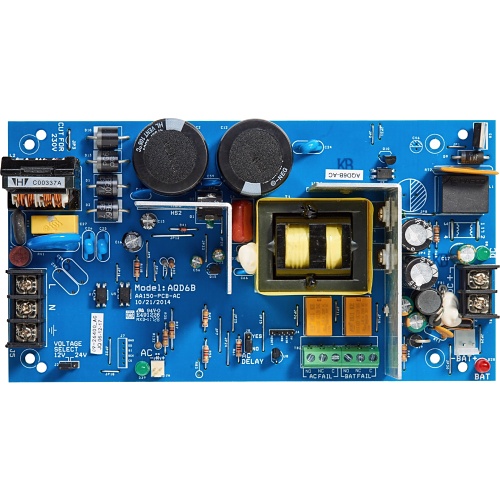

The Securitron AQD6 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 6 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.

Main Features

  • Up to 91% efficiencyWhich results in decreased operating costs and lengthens the lifespan of electronics
  • Circuit breaker protects against overcurrent and reverse battery faults
  • Thermal shutdown protection with auto restart
  • Available with a single relay fire trigger or individually triggered relayed outputs
  • Dual voltage 12 or 24 VDC field selectable continuous output
  • Dedicated battery charging circuit prevents overvoltage on locking devices
  • Tolerates brownout or overvoltage input ± 15% of nominal voltage
  • Low battery cutoff at 9V at 12V or 18V at 24V
  • All combinations of AQ power supplies and distribution boards are UL listed

General Information

Name: Securitron AQD6-8C1R2 Power Supply 12/24VDC 6A8 PTC Amp Output with Fire Trigger, Supervised
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 784607047018
Country of Origin: United States. Country of origin is subject to change.
