Securitron by ASSA ABLOY

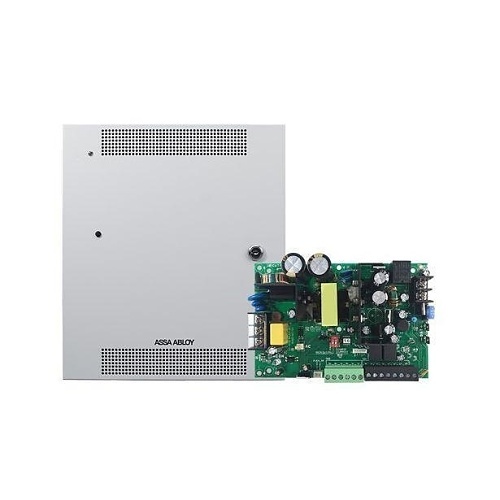

Power Supply 4/3a 12 Or 24vdc D8p Board
AQL4D8PE1 | SN-L4DP1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Main Features
- Low battery cutoff protects batteries from deep discharge
- Dedicated fast charger prolongs battery life
- Enhanced surge immunity for input / output protection
- LockSafe keeps locks cooler by providing a separate, dedicated battery charging circuit
- OutSmart technology provides dual-color LED visual notification which prevents applying incorrect voltages to the power supply (Green 12V, Blue 24V)
- Auxiliary output is Class 2, power limited
- Mix and match UL Listing
- Instant auto-switch to battery on AC loss
- Expandable up to 16-output in the standard enclosure
- Multi-voltage with Securitron B100 module
General Information
Name: Power Supply 4/3a 12 Or 24vdc D8p Board
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number SN-L4DP1 Brand Name Securitron by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number AQL4D8PE1 Product Model AQL4D8PE1 Product Name Securitron AQL4-D8PE1 Power Supply 4/3A DV with Enclosure, (1) D8P Product Type Power Supply
Output Voltage 12V DC
Color Blue, Green Depth 4.5" Form Factor Enclosure Height 14" Width 12"
Input Voltage 120-230V AC Output Current 4A
Limited Warranty Lifetime
Country of Origin US Environmental Certification RoHS, UL Environmentally Friendly Yes
