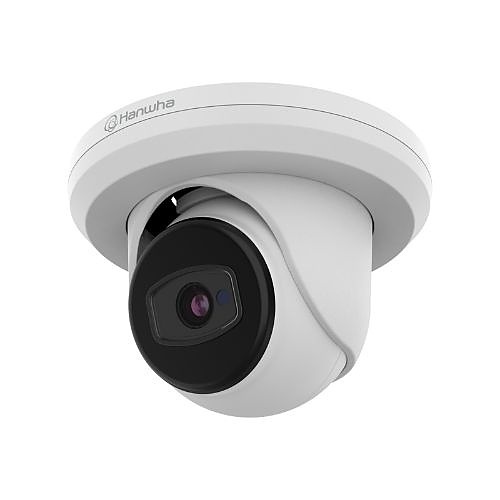

Hanwha ACE-6020R A-Series 2MP Turret Analog Camera, 3.6mm Fixed Lens
ACE-6020R|SQ-ACE6020R
Hanwha ACE-6020R A-Series 2MP Turret Analog Camera, 3.6mm Fixed Lens
ACE-6020R|SQ-ACE6020R
Hanwha Vision
Hanwha ACE-6020R A-Series 2MP Turret Analog Camera, 3.6mm Fixed Lens
ACE-6020R | SQ-ACE6020R
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Flateye cameras combine the convenience and footprint of dome camera installations with the benefits of bullet style camera devices.
- Flat lens design:Prevents IR glare and formation of water spots
- Easy installation:Camera field of view can be adjusted without removal of a dome cover
- Ideal for low light environments:Separation of IR illuminators from the lens prevents IR glare in low light conditions
- Built-in IR Illuminators:Onboard non-visible IR illumination for low light environments
Main Features
- Maximum 2MP resolution, Up to 30 fps
- Day and Night
- IR viewable length: 25m
- Focal length: 3.6mm fixed focal
- IP67, IK10
General Information
Name: Hanwha ACE-6020R A-Series 2MP Turret Analog Camera, 3.6mm Fixed Lens
Category: Hanwha Vision, Video Surveillance, Analog Cameras, HDoC Cameras, Analog Turret Cameras, Turret Cameras, ADI Pro Rewards
UPC Code: 8801089219404
Country of Origin: KR. Country of origin is subject to change.
Specifications
ADI Part Number SQ-ACE6020R Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number ACE-6020R Product Model ACE-6020R Product Name 2MP Analog HD Flateye Camera Product Series A Product Type Flateye Camera Weight 0.90lb
Connectivity Technology Wired Effective Camera Resolution 2MP Field of View H: 77.6°, V: 40.3°, D: 91.5° Lens Type Fixed Focus Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 3.6mm Night Vision Yes Night Vision Type Infrared
Night Vision Distance 82.02 ft
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 131°F Minimum Operating Temperature -22°F Operating Humidity 0-90% RH
Longest Shutter Speed 1/30 Second Shortest Shutter Speed 1/50,000 Second
Focal Length 3.6 mm Lens Included Yes Maximum Focal Length 3.6 mm Minimum Aperture f/1.6
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Flateye
Input Voltage 12V DC
Diameter 4.72" Length 3.6 Mount Type Backbox Mount
Recording Formats Full HD
Analog Video Signal Format AHD, CVBS, CVI, TVI Maximum Resolution 1280 x 720
Limited Warranty 5-Year
Features ,, 0.08Lux at F1.6(Color), 0Lux(B/W - IR LED on), 12V DC power, 2MP Full HD resolution at 30FPS, 3.6mm fixed focal lens FoV H - 81°/V - 42°, Day and Night (ICR), DWDR, Easy installation (Plug and play), Coaxial control, IR distance 20m(65.6 ft), Multi-protocol compatible with AHD, TVI, CVI, CVBS, Transmission distance Max.500m Impact Protection Rating IK10 Ingress Protection Rating IP67
