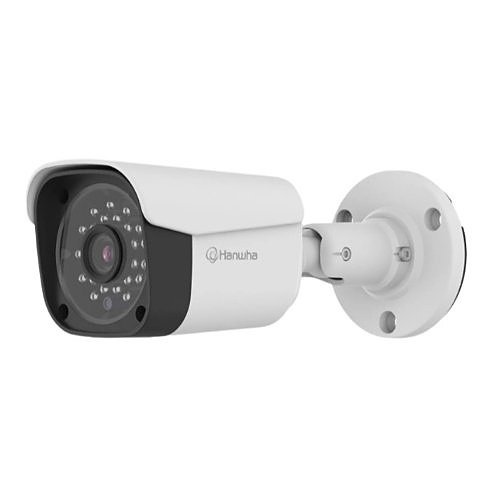

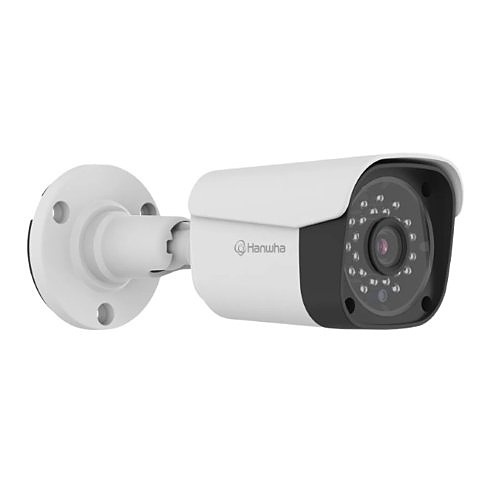

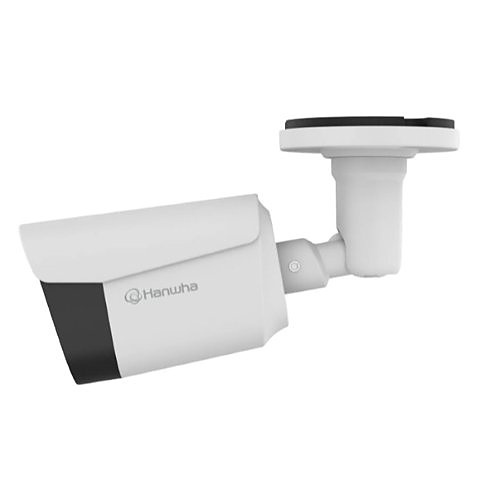

Hanwha ACO-6020R Wisenet Series 2MP IR Bullet Camera, 3.6mm Fixed Focal Lens, IP67, IK10, White
ACO-6020R|SQ-ACO6020R
Hanwha ACO-6020R Wisenet Series 2MP IR Bullet Camera, 3.6mm Fixed Focal Lens, IP67, IK10, White
ACO-6020R|SQ-ACO6020R
Hanwha Vision
Hanwha ACO-6020R Wisenet Series 2MP IR Bullet Camera, 3.6mm Fixed Focal Lens, IP67, IK10, White
ACO-6020R | SQ-ACO6020R
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This 2MP Analog HD IR Bullet camera is a smart solution for using at homes and SMB security surveillance installations.
Main Features
- 2MP Full HD resolution at 30 fps
- 3.60 mm Maximum focal length with sharp output to help identify and locate the object with added efficiency
- Up to 82.02' of night vision
- Infrared night vision type effectively captures visible footage without requiring any external sources of light
- Fixed lens type is ideal for indoor video surveillance where light levels are constant and unchanged
- DC Power source type for your surveillance camera provides maximum energy feasibility and added surveillance productivity
- Digital Wide Dynamic Range (D-WDR) feature for maximum efficiency and convenience
- Wired connectivity technology offers maximum visual convenience
General Information
Name: Hanwha ACO-6020R Wisenet Series 2MP IR Bullet Camera, 3.6mm Fixed Focal Lens, IP67, IK10, White
Category: Hanwha Vision, Video Surveillance, IP Cameras, Bullet Cameras, ADI Pro Rewards
UPC Code: 8801089219367
Country of Origin: KR. Country of origin is subject to change.
Specifications
ADI Part Number SQ-ACO6020R Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number ACO-6020R Product Line Wisenet Product Model ACO-6020R Product Name 2MP Analog HD IR Bullet Product Series A Product Type Bullet Camera Weight 0.93lb
Connectivity Technology Wired Effective Camera Resolution 2MP Field of View H: 81° / V: 42° Lens Type Fixed Focus Maximum Frame Rate 30fps Minimum Focal Length 3.6mm Night Vision Yes Night Vision Type Infrared
Night Vision Distance 82.02 ft Wide Dynamic Range Yes
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 131°F Minimum Operating Temperature -22°F
Longest Shutter Speed 1/30 Second Shortest Shutter Speed 1/50,000 Second
Focal Length 3.6 mm Lens Included Yes Maximum Focal Length 3.6 mm
Color White Depth 7.32" Durability Dustproof, Impact Resistant, Waterproof Form Factor Bullet Height 2.72" Width 2.76"
Input Voltage 12V DC
Length 3.6 Mount Type Backbox Mount, Corner Mount
Analog Video Signal Format AHD, CVBS, CVI, TVI
Features ,, 0.08Lux at F1.6(Color), 0Lux(B/W - IR LED on), 12V DC power, 2MP Full HD resolution at 30FPS, 3.6mm fixed focal lens FoV H - 81°/V - 42°, Day and Night (ICR), DWDR, Easy installation (Plug and play), Coaxial control, IR distance 20m(65.6 ft), Multi-protocol compatible with AHD, TVI, CVI, CVBS, Transmission distance Max.500m Impact Protection Rating IK10 Indoor/Outdoor Indoor Ingress Protection Rating IP67
