Hanwha ACO-8020R A-Series 5MP Analog HD Bullet Camera
ACO-8020R|SQ-ACO8020R
Hanwha ACO-8020R A-Series 5MP Analog HD Bullet Camera
ACO-8020R|SQ-ACO8020R
Hanwha Vision
Hanwha ACO-8020R A-Series 5MP Analog HD Bullet Camera
ACO-8020R | SQ-ACO8020R
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

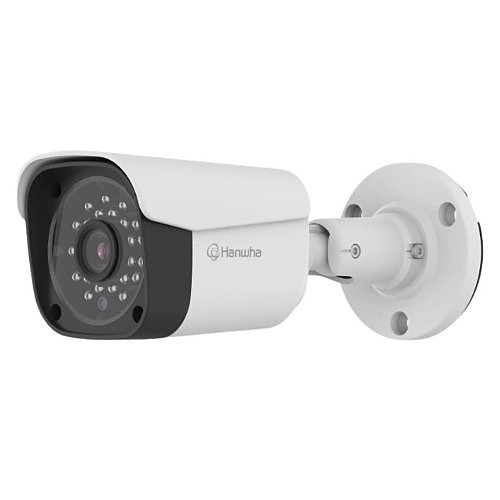

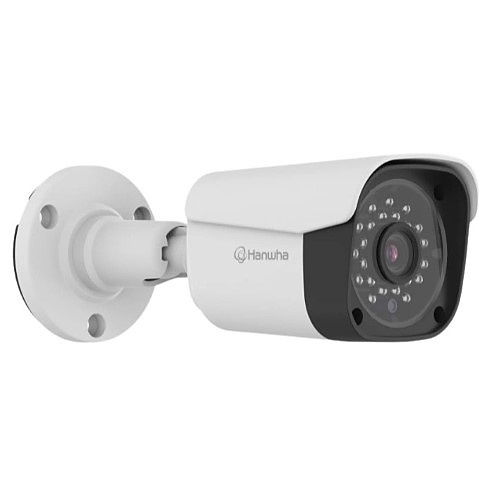

Wisenet A Series 5MP IR bullet analog camera with multi-protocol compatible with AHD, TVI, CVI, CVBS. Easy installation (Plug and play), with coaxial control.
Main Features
- 5MP Resolution at 30 fps, 4MP at CVI
- 0.08 Lux at F1.6 (Color), 0 Lux (B/W, IR LED on)
- 3.6 mm Fixed focal lens FoV H, 94-Degrees / V, 54-Degrees
- Day and Night (ICR), DWDR
- IR Distance 20m (65.6')
- IP67, IK10
- 12V DC Power
- Transmission distance max. 500m
- Easy installation (Plug and play), coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
General Information
Name: Hanwha ACO-8020R A-Series 5MP Analog HD Bullet Camera
Category: Hanwha Vision, Video Surveillance, HDoC Cameras, Bullet Cameras, ADI Pro Rewards
UPC Code: 8801089219374
Country of Origin: KR. Country of origin is subject to change.
Specifications
ADI Part Number SQ-ACO8020R Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number ACO-8020R Product Model ACO-8020R Product Name 5MP Analog HD Bullet Camera Product Series A Product Type Bullet Camera Weight 0.93lb
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View H: 83.9°, V: 63.4°, D :104° Lens Type Fixed Focus Maximum Aperture F1.6 Maximum Frame Rate 30fps Night Vision Yes Night Vision Type Infrared
Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 131°F Minimum Operating Temperature -22°F Operating Humidity 0-90% RH
Longest Shutter Speed 1/30 Second Shortest Shutter Speed 1/50,000 Second
Focal Length 3.6 mm Maximum Focal Length 3.6 mm
Color White Depth 7.32" Durability Dustproof, Impact Resistant, Waterproof Form Factor Bullet Height 2.72" Width 2.76"
Input Voltage 12V DC
Diameter 2.3" Mount Type Corner Mount, Pole Mount, Wall Mount
Recording Formats HD
Features ,, 0.08Lux at F1.6(Color), 0Lux(B/W - IR LED on), 12V DC power, 3.6mm fixed focal lens FoV H - 94°/V - 54°, 5MP resolution at 30FPS, 4MP at CVI, Day and Night (ICR), DWDR, Easy installation (Plug and play), Coaxial control, IR distance 20m(65.6 ft), Multi-protocol compatible with AHD, TVI, CVI, CVBS, Transmission distance Max.500m Impact Protection Rating IK10 Ingress Protection Rating IP67
