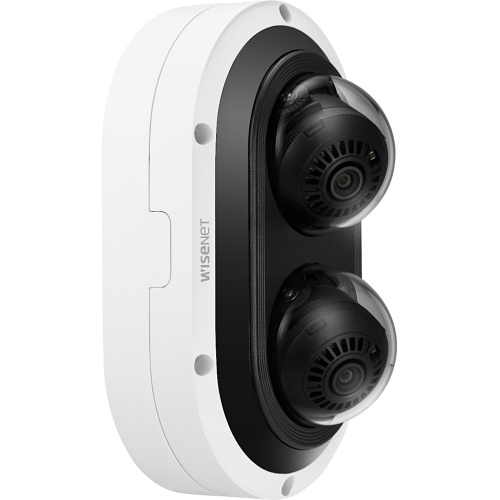

Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White
PNM-C12083RVD|SQ-C12083RVD
Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White
PNM-C12083RVD|SQ-C12083RVD
Hanwha Vision
Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White
PNM-C12083RVD | SQ-C12083RVD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The PNM-C12083RVD from Samsung is a 6 megapixel x 2 AI, IR outdoor dome camera with 3.54-6.69mm lens.
Main Features
- Analytics events based on AI engine: Classified object(Person/Face/Vehicle/License plate)
- WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ, extremeWDR (120 dB)
- Maximum 3328x1872 resolution
- Maximum 15fps@6M
- Color: 0.16lux(F1.67, 1/30sec, 30IRE), 0 Lux (IR LED on)
- 3.54~6.69mm motorized varifocal, 78° tilt angle
- IR viewable length: IR 25m(82ft) based on scene
- TPM 2.0(FIPS 140-2 certified)
- IP66, IK10, NEMA4X
General Information
Name: Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White
Category: Hanwha Vision, Video Surveillance, IP Cameras, Wireless Cameras, Panoramic Cameras, ADI Pro Rewards
UPC Code: 8801089233479
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number SQ-C12083RVD Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number PNM-C12083RVD Product Line WiseNet Product Model PNM-C12083RVD Product Name 6MP X 2 AI, IR Outdoor Dome Product Series P Product Type Network Camera Weight 2.93lb
Effective Camera Resolution 6MP Field of View H: 95.08(Wide)~47.64(Tele) V: 50.78(Wide)~26.7(Tele) D: 112.6(Wide)~54.74(Tele) Lens Type Varifocal Maximum Aperture f/1.67 Maximum Frame Rate 15fps Minimum Focal Length 3.54mm Night Vision Yes Night Vision Type Infrared Optical Zoom 1.9x Video Formats H.264, H.265, MJPEG
Connectivity Technology Wired Image Sensor Type CMOS Night Vision Distance 82.02 ft Wide Dynamic Range Yes
Maximum Video Resolution 1600 x 1200 Number of Sensors 2
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 0.95
Longest Shutter Speed 1/5 Second Shortest Shutter Speed 1/12000 Second
Network (RJ-45) Yes
Focal Length 3.54-6.69 mm Lens Included Yes Maximum Focal Length 6.69 mm Minimum Aperture f/2.64
Remote Management Yes
Color White Depth 5.3" Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof Form Factor Dome Height 3.7" Width 8.5"
Length 5.3" Mount Type Ceiling Mount, Conduit Mount, Corner Mount, Gang Box Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount
Recording Formats HD Storage Type Memory Card
Country of Origin KR Features Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
