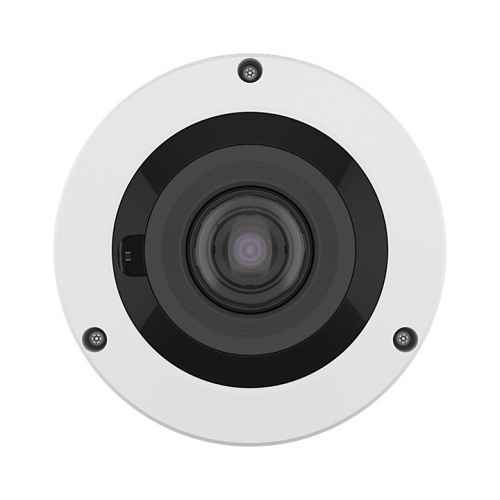

Hanwha HCF-8011RV HD+ Series 5MP IR Wisenet HD+ Outdoor Fisheye Camera, 1.16mm Fixed Lens
HCF-8011RV|SQ-HCF8011RV
Hanwha HCF-8011RV HD+ Series 5MP IR Wisenet HD+ Outdoor Fisheye Camera, 1.16mm Fixed Lens
HCF-8011RV|SQ-HCF8011RV
Hanwha Vision
Hanwha HCF-8011RV HD+ Series 5MP IR Wisenet HD+ Outdoor Fisheye Camera, 1.16mm Fixed Lens
HCF-8011RV | SQ-HCF8011RV
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Hanwha HCF-8011RV HD+ Series is a 5MP outdoor fisheye camera that offers exceptional image quality with a 1.16mm fixed lens. It delivers clear color images even in low light at 0.5 Lux and excellent black and white performance at 0.005 Lux. Equipped with day and night functionality, backlight compensation, wide dynamic range, and super spectral dynamic range, it ensures reliable surveillance under various conditions. The camera features a 10-meter infrared range and supports video transmission up to 300 meters via coaxial cable. It operates on both 24V AC and 12V DC power and boasts high durability with IP66 weather resistance and IK10 vandal protection. Enhance your security with this versatile and rugged fisheye camera designed for outdoor use.
Main Features
- 0.5 Lux at F2.25 (Color), 0.005 Lux (B/W)
- Day and Night (ICR), BLC, WDR, SSDR
- 10m (32.81') IR Viewable Length
- 300m (5C2V Coaxial Cable) Video Transmission Distance
- 24V AC / 12V DC Power
- IP66, IK10
General Information
Name: Hanwha HCF-8011RV HD+ Series 5MP IR Wisenet HD+ Outdoor Fisheye Camera, 1.16mm Fixed Lens
Category: Hanwha Vision, Video Surveillance, Analog Cameras, HDoC Cameras, Analog Panoramic Cameras, Panoramic Cameras, ADI Pro Rewards
UPC Code: 8801089221995
Country of Origin: KR. Country of origin is subject to change.
Specifications
ADI Part Number SQ-HCF8011RV Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number HCF8011RV Product Model HCF-8011RV Product Name HCF-8011RV 5MP IR Wisenet HD+ Outdoor Fisheye Camera Product Series HD+ Product Type Network Camera Weight 1.59lb
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View H : 180°, V : 180° Lens Type Fixed Material Aluminum Maximum Aperture f/2.25 Maximum Frame Rate 20fps Minimum Focal Length 1.16mm Night Vision Yes Night Vision Type Infrared Video Formats H.264, H.265, MJPEG Video Resolution Yes
Night Vision Distance 32.81 ft Wide Dynamic Range Yes
Maximum Video Resolution 1600 x 1200
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature -22°F (-30°C)
Longest Shutter Speed 1/30 Second Shortest Shutter Speed 1/50000 Second
Focal Length 1.16 mm Lens Included Yes Maximum Focal Length 1.16 mm
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Fisheye
Input Voltage 12V DC, 24V AC
Diameter 5.7"
Analog Video Signal Format AHD, CVBS Maximum Resolution 1280 x 720
Limited Warranty 5-Year
Features 2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Wide Dynamic Range (D-WDR), Gain Control, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor Ingress Protection Rating IP66 TAA Compliant Yes
