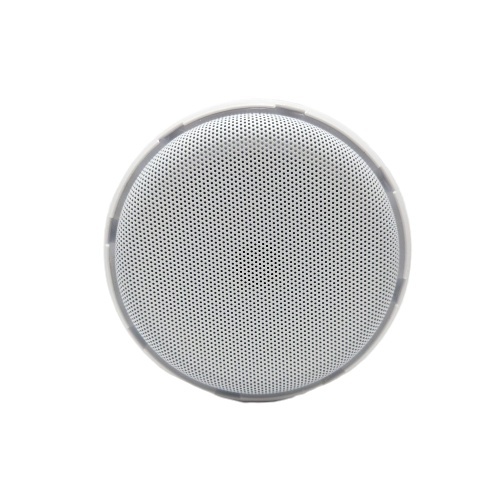

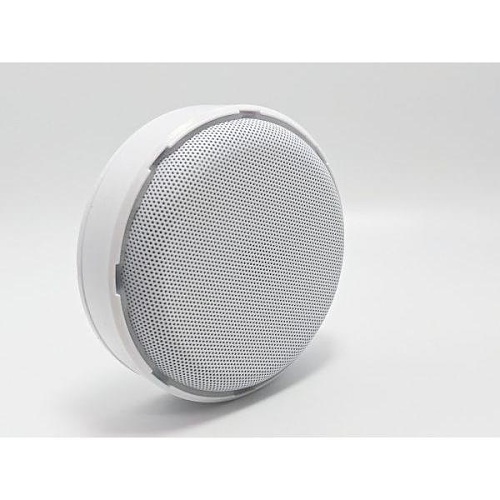

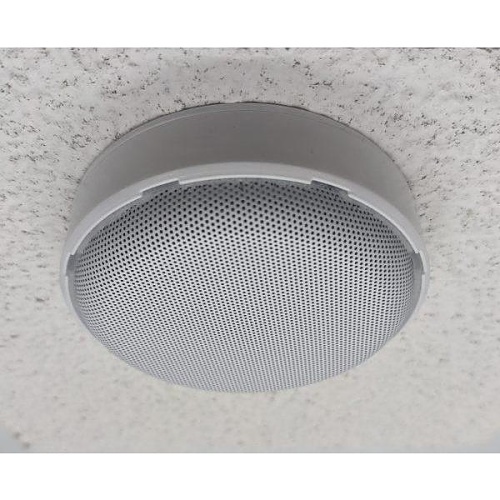

Hanwha HNW-SS-800 Line level Ceiling Mounted Microphone
HNW-SS-800|SQ-HNWSS800
Hanwha HNW-SS-800 Line level Ceiling Mounted Microphone
HNW-SS-800|SQ-HNWSS800
Hanwha Vision
Hanwha HNW-SS-800 Line level Ceiling Mounted Microphone
HNW-SS-800 | SQ-HNWSS800
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Line level ceiling mounted microphone. Omni-Directional pickup with 12’ radius/24’ diameter. 12Vdc power required at 20mA. 30Hz-15kHz. 2.2k ohms Output Impedance, 60 dB SNR, 3 1/8"D x 1'H.
Main Features
- Omni-Directional pickup with 12’ radius
- Requires 12Vdc power at 20mA
- Frequency range: 30Hz-15kHz
- Output Impedance: 2.2k ohms
- Signal-to-Noise Ratio: 60 dB
- Compact size: 3 1/8"D x 1'H
- Compact size: 3 1/8"D x 1'H
- No
- No
- No
General Information
Name: Hanwha HNW-SS-800 Line level Ceiling Mounted Microphone
Category: Hanwha Vision, Video Surveillance, Video Accessories, Microphones, ADI Pro Rewards
UPC Code: 849688022283
Country of Origin: US. Country of origin is subject to change.
Specifications
ADI Part Number SQ-HNWSS800 Brand Name Hanwha Vision Manufacturer Part Number HNW-SS-800 Product Name Line level ceiling mounted microphone Product Type Microphone
Impedance 2200 ohms Sensitivity 60dB
Maximum Frequency Response 1500 Hz Minimum Frequency Response 30Hz
Microphone Technology Omni-directional Microphone Type Ceiling Mount
Depth 3.12" Height 1"
