Image of SQ-HRX163512
Shop all Hanwha Vision

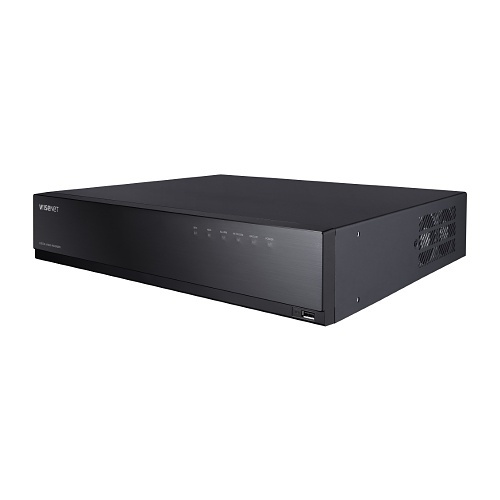

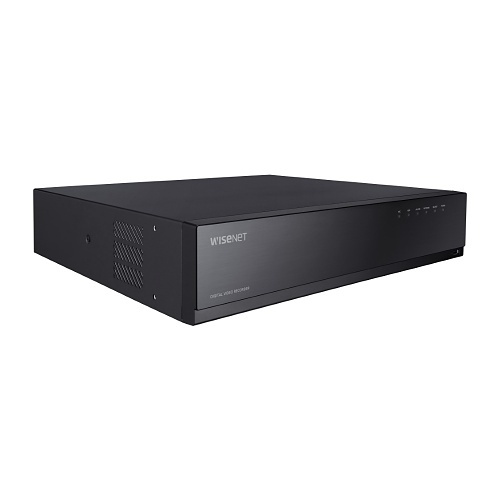

Hanwha HRX-1635-12TB 16-Channel Pentabrid DVR, 12TB, SATA HDD, Black

HRX-1635|SQ-HRX163512
Shop all Hanwha Vision

Hanwha HRX-1635-12TB 16-Channel Pentabrid DVR, 12TB, SATA HDD, Black

HRX-1635|SQ-HRX163512

Sign In for Dealer Pricing

Become an ADI Customer
Image of SQ-HRX163512
Hanwha Vision

Hanwha HRX-1635-12TB 16-Channel Pentabrid DVR, 12TB, SATA HDD, Black

HRX-1635 | SQ-HRX163512

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The Hanwha HRX-1635-12TB is a robust 16-channel Pentabrid DVR equipped with a 12TB SATA hard drive, designed in sleek black. It supports 5-in-1 inputs including AHD, HDTVI, HDCVI, CVBS, and IP, offering flexibility for various camera types. The system can handle up to 18 channels, with a maximum of 16 analog and additional network channels up to 8MP. It boasts a high recording bandwidth of 128Mbps and playback bandwidth of 32Mbps, ensuring smooth video processing. Audio is comprehensive with 4 inputs and 1 output, alongside 16 alarm inputs and 4 relay outputs for enhanced security integration. Easy remote access is enabled via P2P QR code for Wisenet Viewer and Mobile app. Video outputs include HDMI, VGA, and a dedicated spot monitor output. It supports H.265, H.264, and MJPEG codecs and features coaxial control. The device complies with NDAA and FCC standards. Upgrade your surveillance system with this versatile and powerful DVR today!

Main Features

  • 5-in-1 16CH Pentabrid DVR
  • AHD/HDTVI/HDCVI/CVBS/IP inputs
  • Total 18 Channels Analog Maximum 16 channels + Network Maximum 2-18 channels, depending on number of analog channels, up to 8MP
  • Recording Bandwidth Max. 128Mbps, Playback Bandwidth 32Mbps
  • 4 Channel audio input/ 1 channel audio output, 16 alarm input and 4 relay output
  • P2P service QR code connect for easy Wisenet Viewer / Wisenet Mobile app connection

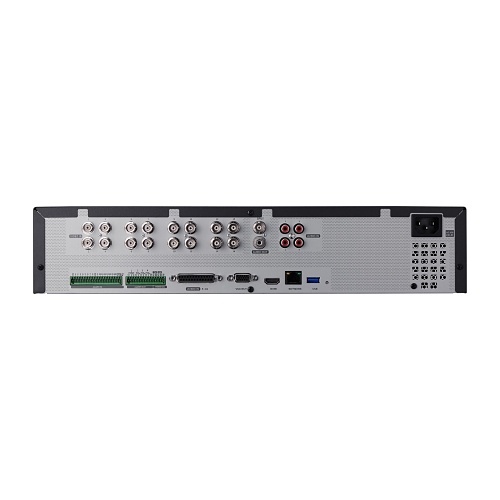

  • HDMI/VGA video output, 1 X spot monitor output
  • H.265, H.264, MJPEG codec
  • Coaxial control
  • NDAA and FCC Compliant

General Information

Name: Hanwha HRX-1635-12TB 16-Channel Pentabrid DVR, 12TB, SATA HDD, Black
Category: Hanwha Vision, Video Surveillance, Recording Devices & Servers, Video Surveillance DVRs, Hybrid Video Recorders, ADI Pro Rewards
UPC Code: 849688019542
Country of Origin: Vietnam. Country of origin is subject to change.
