Image of SQ-HRX163536
Hanwha Vision

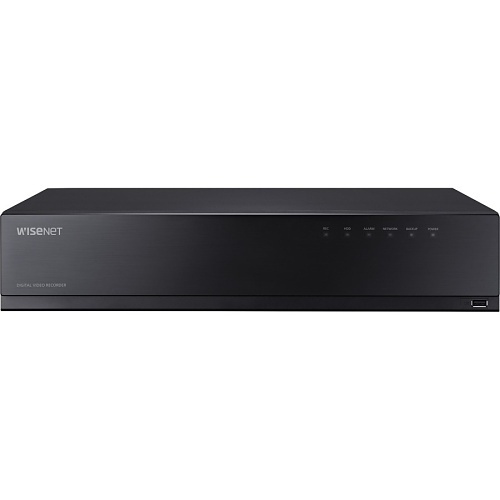

Hanwha HRX-1635-36TB 5-in-1 16-Channel Pentabrid DVR, 36TB

HRX-1635|SQ-HRX163536
Hanwha Vision

Hanwha HRX-1635-36TB 5-in-1 16-Channel Pentabrid DVR, 36TB

HRX-1635|SQ-HRX163536

Sign In for Dealer Pricing

Become an ADI Customer
Image of SQ-HRX163536
Hanwha Vision

Hanwha HRX-1635-36TB 5-in-1 16-Channel Pentabrid DVR, 36TB

HRX-1635 | SQ-HRX163536

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The HRX-1635-36TB from Hanwha Vision is a 16 channel pentabrid digital video recorder with 36TB HDD.

Main Features

  • 5-In-1 16-Channel Pentabrid DVR
  • AHD/HDTVI/HDCVI/CVBS/IP Inputs
  • Total 18-Channel (Analog Maximum 16-Channel plus Network maximum 2-18 channels, depending on number of analog channels), up to 8MP
  • H.265, H.264, MJPEG Codec
  • Recording Analog Camera up 8MP (15 fps), 5MP (20 fps), 4MP (30 fps), 2MP (30 fps), 1MP (30 fps), 960H (or 720H) (30 fps) per channel
  • Recording bandwidth max. 128 Mbps, playback bandwidth 32 Mbps
  • 4-Channel audio input / 1-Channel audio output, 16-alarm input and 4-relay output
  • Coaxial control
  • Up to 2 SATA HDDs (6TB / HDD)
  • HDMI / VGA Video output, 1x spot monitor output

General Information

Name: Hanwha HRX-1635-36TB 5-in-1 16-Channel Pentabrid DVR, 36TB
Category: Hanwha Vision, Video Surveillance, Recording Devices & Servers, Video Surveillance DVRs, ADI Pro Rewards
UPC Code: 849688019603
Country of Origin: Vietnam. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Manufacturer Brochure
