Hanwha PNM-8082VT P-Series 2MP 3-Channel Multi-Directional Camera, 3-6mm Varifocal Lenses, White
PNM-8082VT|SQ-PNM8082VT
Hanwha PNM-8082VT P-Series 2MP 3-Channel Multi-Directional Camera, 3-6mm Varifocal Lenses, White
PNM-8082VT|SQ-PNM8082VT
Hanwha Vision
Hanwha PNM-8082VT P-Series 2MP 3-Channel Multi-Directional Camera, 3-6mm Varifocal Lenses, White
PNM-8082VT | SQ-PNM8082VT
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

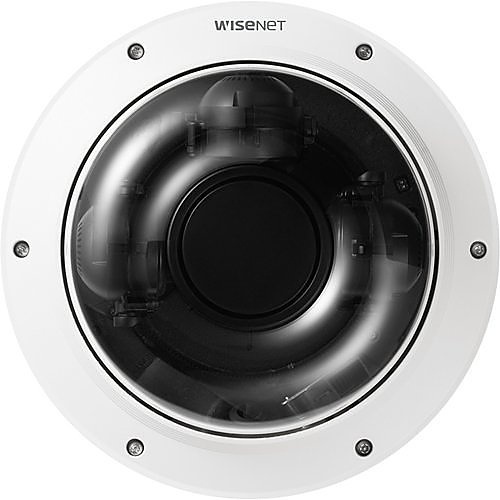

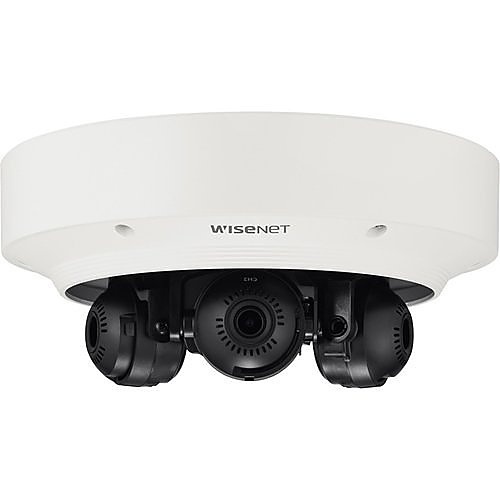

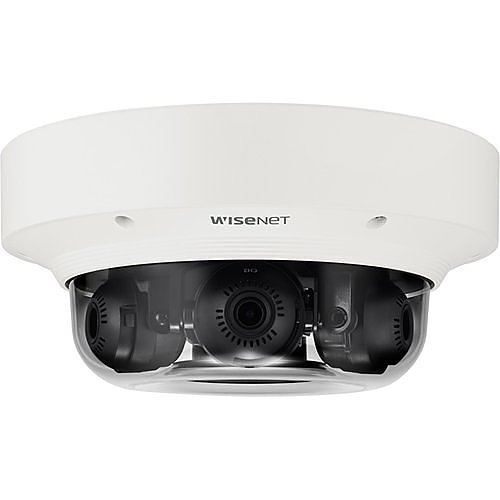

Wisenet P series network vandal outdoor Multi-Sensor Multi-Directional dome camera provides 3x 2MP sensors for a total resolution of 6MP. Each camera head features 30fps, a motorized vari-focal lens 2x (3.0~6.0mm) (107°~56.3°), maximum 321° FoV, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, defocus detection, built-in analytics, true D/N, 2x SD card slots, hallway view, HLC, PoE+, IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F), White camera body.
Main Features
- Maximum 6MP at 30 fps, 2MP X 3 sensors using one IP address
- Motorized vari-focal 3.0 6 mm (FOV 107 to 56.3)
- Triple codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 150dB, 2MP at 30fps
- Defocus detection, Loitering, directional detection, tampering, motion detection, object enter or exit an area
- Hallway view supported for each sensor
- 2x microSD/SDHC/SDXC Memory Card slots
- Power PoE+ (IEEE802.3at)
- IP66, IK10, NEMA4X
General Information
Name: Hanwha PNM-8082VT P-Series 2MP 3-Channel Multi-Directional Camera, 3-6mm Varifocal Lenses, White
Category: Hanwha Vision, Video Surveillance, IP Cameras, Panoramic Cameras, ADI Pro Rewards
UPC Code: 8801089215895
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number SQ-PNM8082VT Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number PNM-8082VT Product Model PNM-8082VT Product Name 6MP (2MP x 3) Multi-Sensor, Multi-Directional Camera Product Series P Product Type Network Camera Weight 6.61lb
Effective Camera Resolution 2MP Field of View H: 107°(Wide)~56.3°(Tele) / V: 57°(Wide)~31.5°(Tele) / D: 126°(Wide)~64.3°(Tele) Lens Type Varifocal Maximum Aperture f/3.1 Maximum Frame Rate 30fps Minimum Focal Length 3mm Optical Zoom 2x Video Formats H.264, H.265, MJPEG
Connectivity Technology Wired Image Sensor Type CMOS Wide Dynamic Range Yes
Maximum Video Resolution 1600 x 1200 Number of Sensors 3
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 0.95
Longest Shutter Speed 2 Second Minimum Illumination 0 lux Shortest Shutter Speed 1/12000 Second
Network (RJ-45) Yes
Focal Length 3-6 mm Lens Included Yes Maximum Focal Length 6 mm Minimum Aperture f/2.2
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Dome Height 5" Width 10"
Diameter 9.9" Mount Type Backbox Mount, Box Mount, Ceiling Mount, Corner Mount, Gang Box Mount, Pendant Mount, Pole Mount, Roof Mount, Wall Mount
Recording Formats Full HD
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
Country of Origin KR Features Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Defog, Digital Image Stabilization, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Tamper Detection Impact Protection Rating IK10 Indoor/Outdoor Outdoor
