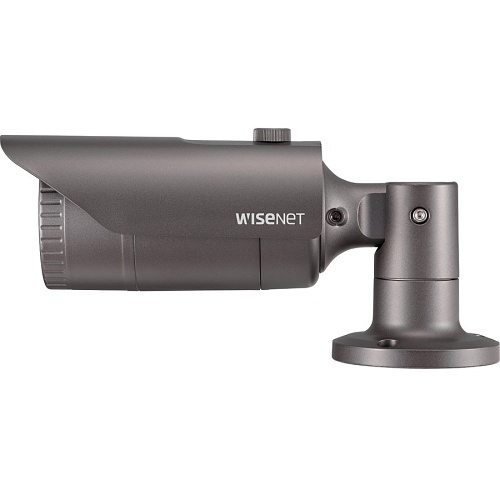

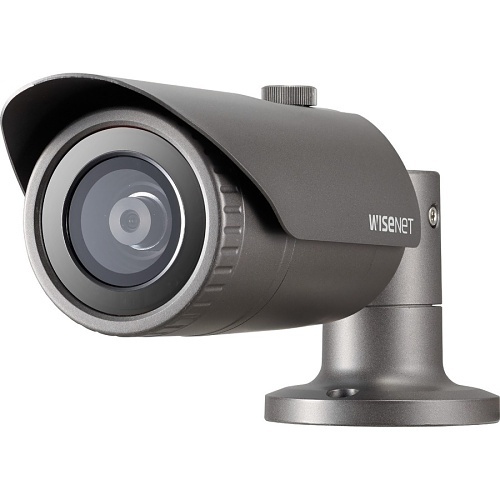

Hanwha QNO-7032R 4MP IR Bullet Camera, 6mm Fixed Lens, IP66, IK10
QNO-7032R|SQ-QNO7032R
Hanwha QNO-7032R 4MP IR Bullet Camera, 6mm Fixed Lens, IP66, IK10
QNO-7032R|SQ-QNO7032R
Hanwha Vision
Hanwha QNO-7032R 4MP IR Bullet Camera, 6mm Fixed Lens, IP66, IK10
QNO-7032R | SQ-QNO7032R
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Experience superior security with the Hanwha QNO-7032R, a 4MP IR bullet camera featuring a 6mm fixed lens. It delivers smooth video with 20 fps at 4MP and 30 fps at 2MP, supporting H.265, H.264, and MJPEG codecs for multiple streams. Equipped for all conditions with Day and Night function, 120dB WDR, and advanced detection capabilities including defocus, directional, motion, and tampering alerts. Store footage on a micro SD slot (up to 128GB) and enjoy flexible power options with PoE and 12V DC. Its robust design ensures durability with IP66 weather resistance and IK10 vandal protection, plus 30m IR visibility. Features hallway view, WiseStream II, and lens distortion correction to enhance monitoring quality. Invest in this high-performance camera to secure your premises effectively.
Main Features
- 4MP resolution
- 20 fpsat4MP, 30 fpsat2M
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 30m, IP66, IK10
- Hallway view support, WiseStream II
- LDC support (Lens Distortion Correction)
General Information
Name: Hanwha QNO-7032R 4MP IR Bullet Camera, 6mm Fixed Lens, IP66, IK10
Category: Hanwha Vision, Video Surveillance, IP Cameras, Bullet Cameras, ADI Pro Rewards
UPC Code: 8801089202383
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
ADI Part Number SQ-QNO7032R Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number QNO7032R Product Model QNO-7032R Product Name 4MP Network IR Bullet Camera with 6.0mm Lens Product Series Q Product Type Network Camera Weight 1.54lb
Effective Camera Resolution 4MP Field of View H : 49.0, V : 27.6, D : 55.6 Lens Type Fixed Maximum Aperture f/2 Maximum Frame Rate 30fps Minimum Focal Length 6mm Night Vision Yes Night Vision Type Infrared Video Formats H.264, H.265, MJPEG
Connectivity Technology Wired Image Sensor Type CMOS Night Vision Distance 98.43 ft Wide Dynamic Range Yes
Maximum Video Resolution 1600 x 1200
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 0.95
Longest Shutter Speed 1/5 Second Shortest Shutter Speed 1/12000 Second
Network (RJ-45) Yes
Focal Length 6 mm Lens Included Yes Maximum Focal Length 6 mm Minimum Aperture f/2
Remote Management Yes
Color Gray Durability Dustproof, Impact Resistant, Waterproof Form Factor Bullet
Input Voltage 12V DC
Diameter 2.8" Length 6 Mount Type Conduit Mount, Gang Box Mount
Storage Type Memory Card
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
Limited Warranty 3-Year
Country of Origin VN Features Alarm Triggering, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Day/Night, Digital Noise Reduction, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
