Image of SQ-QNVC8023R
Hanwha Vision

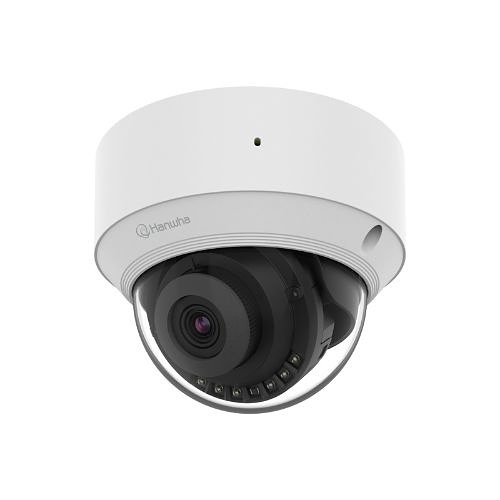

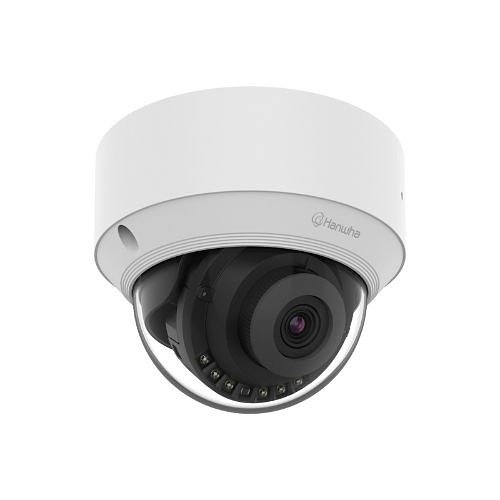

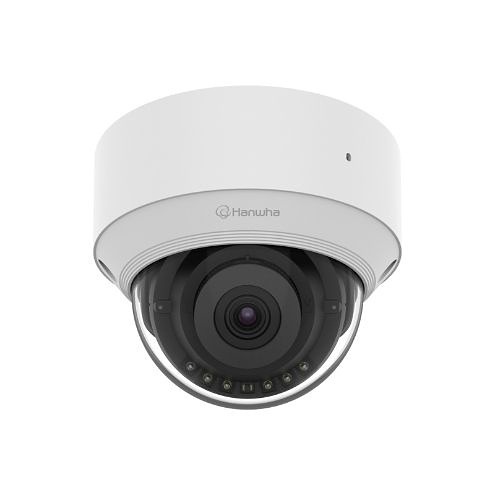

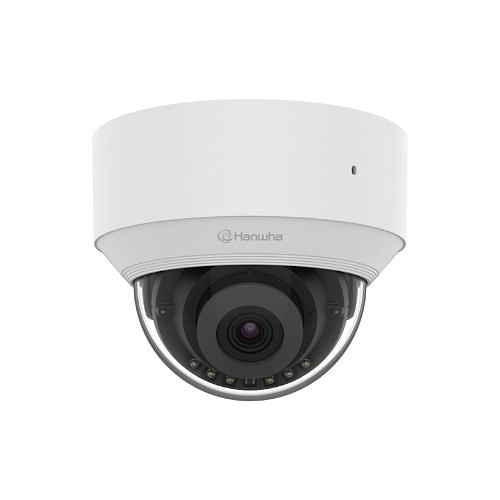

Hanwha QNV-C8023R 5MP AI Outdoor Vandal Dome IR Camera, 4mm Fixed Lens

QNV-C8023R|SQ-QNVC8023R
Hanwha Vision

Hanwha QNV-C8023R 5MP AI Outdoor Vandal Dome IR Camera, 4mm Fixed Lens

QNV-C8023R|SQ-QNVC8023R

Sign In for Dealer Pricing

Become an ADI Customer
Image of SQ-QNVC8023R
Hanwha Vision

Hanwha QNV-C8023R 5MP AI Outdoor Vandal Dome IR Camera, 4mm Fixed Lens

QNV-C8023R | SQ-QNVC8023R

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The Wisenet Q Mini Network Outdoor Vandal Dome Camera delivers high-performance surveillance in a compact design, making it an ideal choice for demanding environments. Featuring a 5MP sensor with 30fps recording and a fixed 4mm lens providing an 80° horizontal and 59° vertical field of view, this camera ensures detailed, wide-angle coverage. Powered by advanced AI technology, it supports triple codec (H.265/H.264/MJPEG) with Wisestream III for efficient bandwidth usage, WiseNRⅡ for noise reduction, and a 120dB WDR for clear imaging in challenging lighting conditions. The IR illumination allows visibility up to 30m (98.42') in complete darkness.

Main Features

  • 5MP resolution
  • H.265, H.264, MJPEG, WiseStreamⅢ
  • Dynamic Privacy Masking
  • Analytics events based on AI engine
  • Motion detection, Virtual line(Crossing/Direction)
  • Virtual area(Loitering/Intrusion/Enter/Exit)
  • Hard-coated dome bubble/ IP66, IK10
  • PoE: Max 8.1W
  • Operating temperature -30°C-+55°C(-22°F - +131°F)
  • Open platform

General Information

Name: Hanwha QNV-C8023R 5MP AI Outdoor Vandal Dome IR Camera, 4mm Fixed Lens
Category: Hanwha Vision, Video Surveillance, IP Cameras, Dome Cameras, ADI Pro Rewards
UPC Code:
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources
