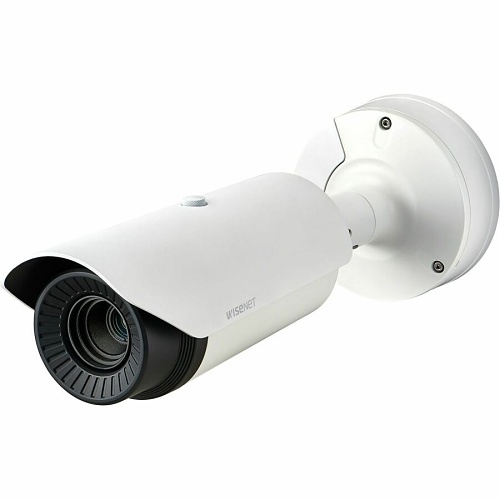

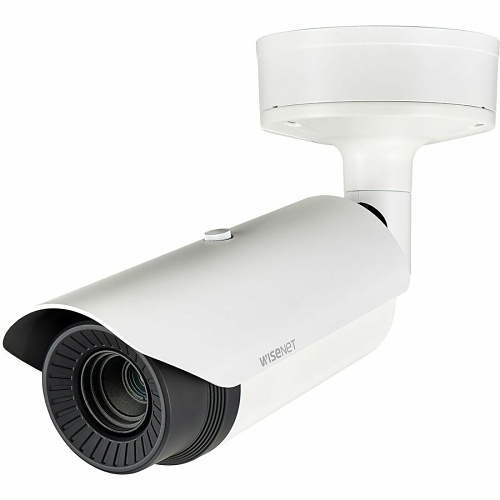

Hanwha TNO-L4030TR VGA Radiometric Bullet Camera, 13mm Fixed Lens, IP66, IK10, NEMA4X
TNO-L4030TR|SQ-TNL4030TR
Hanwha TNO-L4030TR VGA Radiometric Bullet Camera, 13mm Fixed Lens, IP66, IK10, NEMA4X
TNO-L4030TR|SQ-TNL4030TR
Hanwha Vision
Hanwha TNO-L4030TR VGA Radiometric Bullet Camera, 13mm Fixed Lens, IP66, IK10, NEMA4X
TNO-L4030TR | SQ-TNL4030TR
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The TNU-X6320A series is an explosion-protected PTZ camera station for use in hazardous areas in onshore, offshore, marine, and heavy industrial environments. The base unit carries dual NPT cable entries with easy access for cable termination during installation as standard, maximizing compatibility and ease of use with existing fixed conduit installations.
Main Features
- Network camera - Helps achieve high-quality video results
- 13 mm maximum focal length for dependable identification distances with better coverage
- f/1 maximum aperture for productive capturing according to focal length and lighting conditions
- Fixed lens type is set all the way open to its lowest F stop, and is common on small form factor cameras
- DC power source type for your network camera provides maximum energy feasibility and added surveillance productivity
- Digital Image Stabilization feature for maximum productivity with added dependability
- Wired connectivity technology delivers exceptional performance to offer maximum usability
General Information
Name: Hanwha TNO-L4030TR VGA Radiometric Bullet Camera, 13mm Fixed Lens, IP66, IK10, NEMA4X
Category: Hanwha Vision, Video Surveillance, IP Cameras, Dome Cameras, Thermal Imaging Cameras, ADI Pro Rewards
UPC Code: 8801089214003
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number SQ-TNL4030TR Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number TNOL4030TR Product Model TNO-L4030TR Product Name VGA H.265 Thermal Camera Product Series T Product Type Network Camera Weight 6.89lb
Field of View H: 48.6° / V: 36.4 / D: 61.6° Lens Type Fixed Maximum Aperture f/1 Maximum Frame Rate 8fps Minimum Focal Length 13mm Video Formats H.264, H.265, MJPEG Video Resolution 640 x 480
Maximum Video Resolution 640 x 480
Maximum Operating Temperature 140°F Minimum Operating Temperature -40°F Operating Humidity 0.9
Network (RJ-45) Yes
Lens Included Yes Maximum Focal Length 13 mm
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Bullet
Input Voltage 12V DC, 24V AC
Diameter 4"
Storage Type Memory Card
Analog Video Signal Format CVBS
Features Audio Detection, Digital Image Stabilization, Mirror, Motion Detection, Multi-view Stream, Privacy Masking, Sound Detection, Tampering Alarm, Temperature Sensor, Video Management System Impact Protection Rating IK10
