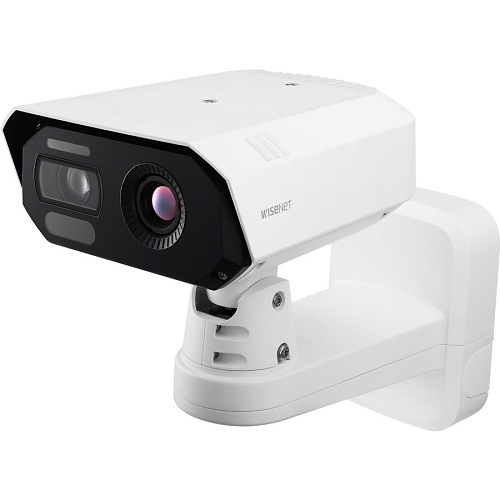

Hanwha TNM-C4940TD T Series Bi-Spectrum AI Thermal Camera, 9.1mm Fixed Lens
TNM-C4940TD|SQ-TNMC4940T
Hanwha TNM-C4940TD T Series Bi-Spectrum AI Thermal Camera, 9.1mm Fixed Lens
TNM-C4940TD|SQ-TNMC4940T
Hanwha Vision
Hanwha TNM-C4940TD T Series Bi-Spectrum AI Thermal Camera, 9.1mm Fixed Lens
TNM-C4940TD | SQ-TNMC4940T
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Hanwha TNM-C4940TD T Series Bi-Spectrum AI Thermal Camera combines a dual sensor system with VGA thermal and 4K visible video output. It features a built-in 9.1mm fixed lens for thermal imaging and a motorized varifocal lens for visible range, covering wide fields of view. The camera supports triple codec streaming and advanced AI-powered analytics like object detection and virtual line monitoring. With robust IP66/IP67 and IK10 ratings, plus an all-in-one wall and pole mount design, it offers reliable performance in diverse environments. Enhance your security setup with this intelligent, versatile camera today!
Main Features
- Wisenet T network Bi-spectrum AI Thermal Camera with a Dual sensor camera featuring a VGA thermal and 4K visible video output.
- Built-in 9.1mm fixed lens (FoV: 50° thermal) & 4.4~9.3mm motorized varifocal lens (FoV: 112.1°~47.5° visible)
- Triple codec (H.265/H.264/MJPEG), Wise Stream III (visible), WiseStream II (thermal)
- WDR 120dB, IR viewable length 30m (98ft)
- Features Based on AI engine: WiseNR II, Wise Stream III (visible only), Analytics events based on AI engine (visible only): Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Stopped vehicle, Traffic jam
- FIPS 140-2
- 2x micro SD card (512GB x2)
- IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
- PoE+/12VDC
- Wall & Pole mount all-in-one design
General Information
Name: Hanwha TNM-C4940TD T Series Bi-Spectrum AI Thermal Camera, 9.1mm Fixed Lens
Category: Hanwha Vision, Video Surveillance, IP Cameras, Thermal Imaging Cameras, ADI Pro Rewards
UPC Code: 8801089217608
Country of Origin: KR. Country of origin is subject to change.
Specifications
ADI Part Number SQ-TNMC4940T Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number TNM-C4940TD Product Model TNM-C4940TD Product Name 4K/VGA Bi-spectrum AI Thermal Camera Product Series T Product Type Thermal Camera Weight 9.99lb
Connectivity Technology Wired Field of View H: 112.1°-47.5°, V: 58.0°-26.6°, D: 137.5°-54.6° Lens Type Fixed Maximum Aperture f/2.15 Maximum Frame Rate 30fps Minimum Focal Length 4.4mm Optical Zoom 2.1x Video Formats H.264, H.265, MJPEG
Wide Dynamic Range Yes
Maximum Video Resolution 3840 x 2160 Number of Sensors 2
Maximum Operating Temperature 140°F Minimum Operating Temperature -58°F Operating Humidity 0.95
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.04 lux|0.06 lux Shortest Shutter Speed 1/5 Second
Network (RJ-45) Yes
Focal Length 4.4-9.3 mm Lens Included Yes Maximum Focal Length 9.3 mm Maximum Thermal Focal Length 9.14mm
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Waterproof
Input Voltage 12V DC
Mount Type Pole Mount, Wall Mount
Storage Type Memory Card
Features Alarm Triggering, Audio Compression, Face Detection, Human Detection, Motion Detection, Privacy Masking, SD Card Local Storage, Vehicle Detection Impact Protection Rating IK10 Ingress Protection Rating IP66, IP67
