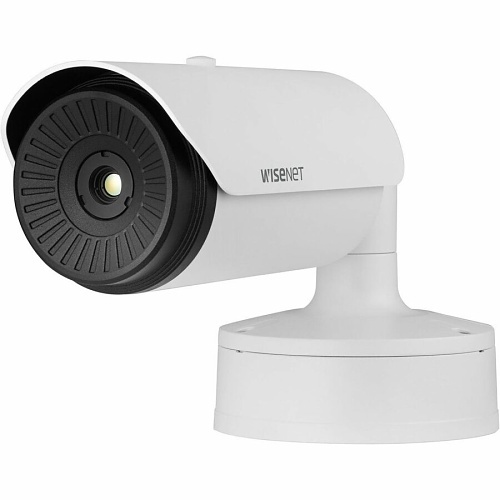

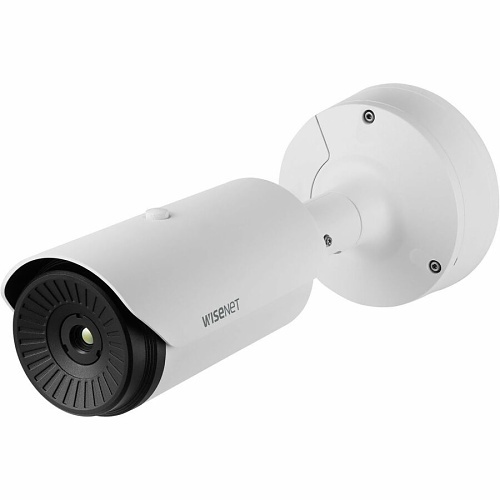

Hanwha TNO-L3030T QVGA Thermal Bullet Camera, 13.7mm Fixed Lens
Hanwha TNO-L3030T QVGA Thermal Bullet Camera, 13.7mm Fixed Lens
Hanwha TNO-L3030T QVGA Thermal Bullet Camera, 13.7mm Fixed Lens
TNO-L3030T | SQ-TNOL3030T
Please sign in to view pricing and availability and to add to cart.
Product Overview
In challenging weather conditions such as fog, smoke, or rain, or in low-light conditions, it can be difficult to distinguish people or objects using a visible camera or the human eye. TNO-L3030T employs advanced thermal imaging technology to provide high contrast images based on temperature differences between the object and its surroundings. This enables users to clearly detect objects 24/7 with ease. TNO-L3040T cameras provide seven different color palette for optimal image selection in diverse environments. Each palette has a specific set of colors which changes according to the temperature range of the scene.
Main Features
- Network camera - Helps achieve high-quality video results
- 13.70 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
- f/1 maximum aperture for better light absorption and dependable, better-quality results
- Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
- AC power source type for your network camera provides maximum energy feasibility and added surveillance productivity
- Day/Night feature for better reliance and usability
- Wired connectivity technology delivers exceptional performance to offer maximum usability
General Information
Specifications
ADI Part Number SQ-TNOL3030T Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number TNO-L3030T Product Model TNO-L3030T Product Name Lower Frame Rate QVGA Thermal Camera Product Series T Product Type Network Camera Weight 5.54lb
Field of View H:16.0°, V:12.0°, D:20.0° Lens Type Fixed Maximum Aperture f/1 Maximum Frame Rate 8fps Minimum Focal Length 13.7mm Video Formats H.264, H.265, MJPEG Video Resolution 320 x 240
Maximum Video Resolution 320 x 240
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 0.9
Network (RJ-45) Yes
Focal Length 13.7 mm Lens Included Yes Maximum Focal Length 13.7 mm
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Bullet
Input Voltage 12V DC, 24V AC
Diameter 5.8"
Storage Type Memory Card
Analog Video Signal Format CVBS
Features Audio Detection, Day/Night, Digital Image Stabilization, Mirror, Motion Detection, Privacy Masking, Removable IR Cut-off Filter, Shock Detection, Tamper Detection, Tampering Alarm, Video Content Analytics, Wide Dynamic Range Impact Protection Rating IK10
