Hanwha TNV-C8011RW T Series 5MP AI IR Wall Mount Camera, 1.6mm Fixed Lens, 15m IR, White
TNV-C8011RW|SQ-TNVC801RW
Hanwha TNV-C8011RW T Series 5MP AI IR Wall Mount Camera, 1.6mm Fixed Lens, 15m IR, White
TNV-C8011RW|SQ-TNVC801RW
Hanwha Vision
Hanwha TNV-C8011RW T Series 5MP AI IR Wall Mount Camera, 1.6mm Fixed Lens, 15m IR, White
TNV-C8011RW | SQ-TNVC801RW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

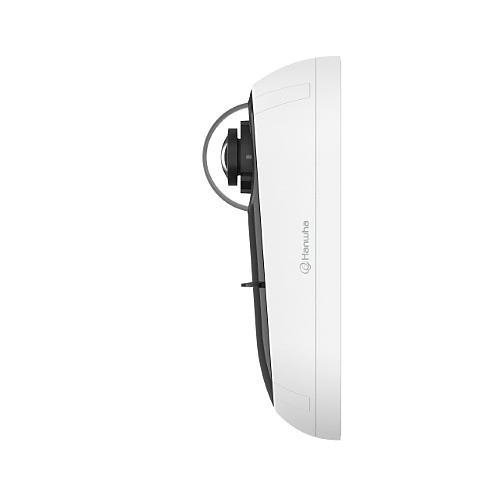

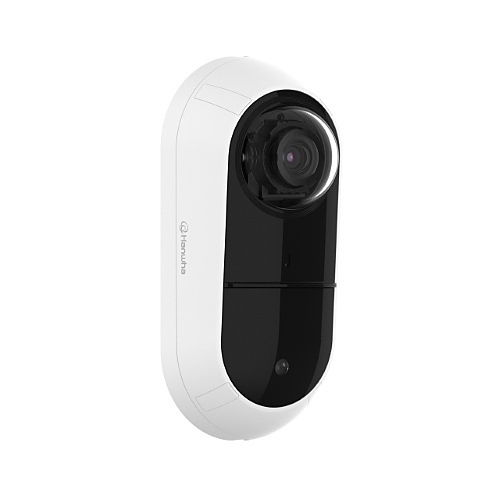

The TNV-C8011RW is a 5MP AI IR Wall Mount Camera designed for advanced surveillance applications. With its innovative features and robust design, this camera offers comprehensive monitoring capabilities, making it ideal for various security needs. From AI-based analytics to anti-ligature design, it provides enhanced security and efficiency in surveillance operations.
Main Features
- Analytics events based on AI engine
- AI based loitering detection and line crossing detection
- 5MP Wide Panoramic View (H: 175°) with Eye level monitoring
- 15m IR Viewable Length, 25° Tilt Lens
- Compact Size and Anti Ligature Design (Rounded Edge)
- WDR 120dB, SSNR, WiseNRII (Based on AI engine)
- Business intelligence (People counting, Vehicle counting, Queue management, Heatmap)
- WiseStreamⅢ (Based on AI engine)
- Built in Microphone
- IP66, IK10
General Information
Name: Hanwha TNV-C8011RW T Series 5MP AI IR Wall Mount Camera, 1.6mm Fixed Lens, 15m IR, White
Category: Hanwha Vision, Video Surveillance, IP Cameras, Covert Cameras, ADI Pro Rewards
UPC Code: 8801089228246
Country of Origin: VN. Country of origin is subject to change.
Specifications
ADI Part Number SQ-TNVC801RW Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number TNV-C8011RW Product Model TNV-C8011RW Product Name 5MP AI, IR Wall Mount Panoramic Camera Product Series T Product Type Panoramic Camera Weight 1.32 lb
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View H: 175°, V: 125°, D: 175° Lens Type Fixed Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 1.6mm Night Vision Yes Night Vision Type Infrared Video Formats H.264, H.265, MJPEG Video Resolution Yes
Night Vision Distance 49.21 ft Wide Dynamic Range Yes
Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 131°F Minimum Operating Temperature -22°F Operating Humidity 95% RH
Longest Shutter Speed 1/5 Second Minimum Illumination 0.0038 lux Shortest Shutter Speed 1/12000 Second
Network (RJ-45) Yes
Focal Length 1.6 mm Lens Included Yes Maximum Focal Length 1.6 mm
Remote Management Yes
Color White Depth 22.4" Durability Dustproof, Impact Resistant, Waterproof Form Factor Dome Height 65.5" Width 31.5"
Mount Type Wall Mount
Storage Type Memory Card
Limited Warranty 5-Year
Environmental Certification CE, FCC, UL Environmentally Friendly Yes Features Back Light Compensation (BLC), Built-in HLC, Built-in IR LED, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Motion Detection, Privacy Masking, Wide Dynamic Range Impact Protection Rating IK10 Ingress Protection Rating IP66 TAA Compliant Yes
