Hanwha Vision XNB-H6244A X Series 2MP IP ATM Camera, Kit
XNB-H6244A|SQ-XNBH6244A
Hanwha Vision XNB-H6244A X Series 2MP IP ATM Camera, Kit
XNB-H6244A|SQ-XNBH6244A
Hanwha Vision
Hanwha Vision XNB-H6244A X Series 2MP IP ATM Camera, Kit
XNB-H6244A | SQ-XNBH6244A
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Hanwha Vision XNB-H6244A X Series is a 2MP IP ATM camera kit delivering sharp 1920 x 1080 resolution. It supports H.265, H.264, and MJPEG codecs with multiple streaming options, offering smooth 60 fps at 2MP. Featuring 120dB wide dynamic range, built-in analytics, and a memory slot compatible with SD/SDHC/SDXC cards up to 256GB, it ensures reliable performance. The camera includes Hallway View and WiseStream II, plus LDC, PoE/12V DC power, and two-way audio. The kit comes complete with the XNB-6002 unit, STB-2000 ATM mount bracket, and SLA-T2415A. Upgrade your security setup with this comprehensive solution today!
Main Features
- 2MP (1920 x 1080) resolution
- H.265, H.264, MJPEG codec support, Multiple streaming
- 60 fpsat2MP (H.265 / H.264)
- WDR (120dB)
- Built-in Analytics
- SD / SDHC / SDXC memory slot (Max. 256GB)
- Hallway View, WiseStream II support
- LDC, PoE / 12V DC, Bi-directional audio support
- ATM mount bracket (STB-2000) included
- Includes XNB-6002 main unit, STB-2000 & SLA-T2415A
General Information
Name: Hanwha Vision XNB-H6244A X Series 2MP IP ATM Camera, Kit
Category: Hanwha Vision, Video Surveillance, IP Cameras, Covert Cameras, ADI Pro Rewards
UPC Code: 8801089227720
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number SQ-XNBH6244A Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number XNBH6244A Product Model XNB-H6244A Product Name 2MP Network ATM Camera Kit (1.5m cable) Product Series X Product Type Network Camera Weight 14.82oz
Connectivity Technology Wired Effective Camera Resolution 2MP Field of View H: 138°, V: 73°, D: 165° Lens Type Fixed Maximum Aperture f/2.0 Maximum Frame Rate 60fps Minimum Focal Length 2.4mm Video Formats H.264, H.265, MJPEG
Wide Dynamic Range Yes
Maximum Video Resolution 1600 x 1200
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature 14°F (-10°C) Operating Humidity 0.9
Longest Shutter Speed 2 Second Shortest Shutter Speed 1/12000 Second
Network (RJ-45) Yes
Focal Length 2.4 mm Lens Included Yes Maximum Focal Length 2.40 mm
Remote Management Yes
Color Black Form Factor Box Mount
Input Voltage 12V DC
Recording Formats Full HD Storage Type Memory Card
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
Limited Warranty 5-Year
Features Audio Detection, Defog, Gain Control, HTTPS Encryption, Human Detection, Motion Detection, Sound Detection, Tamper Detection, White Balance, Wide Dynamic Range Package Contents - 2MP Network ATM Camera

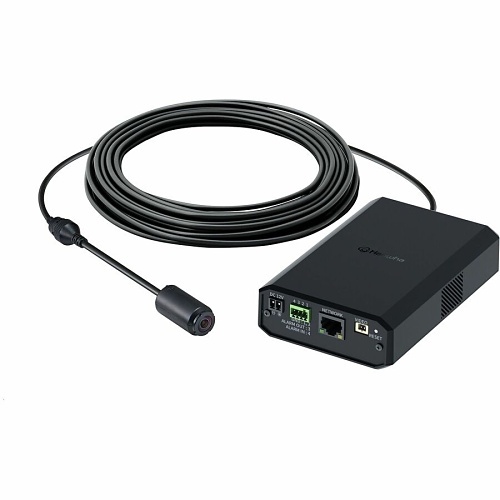

- XNB-6002 main unit
- SLA-T2415A lens

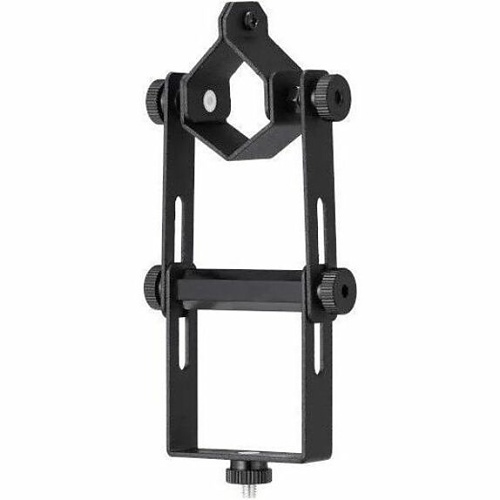

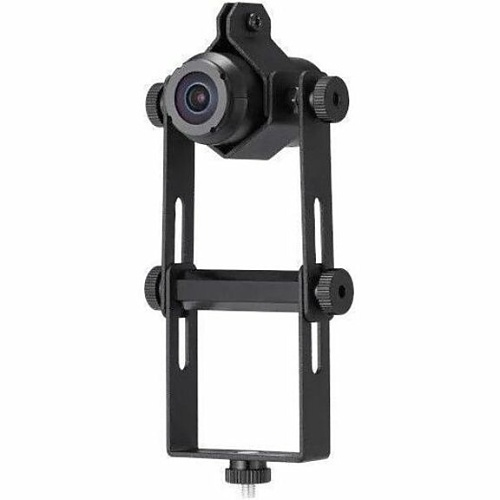

- STB-2000 ATM bracket
- 1.5m cable
