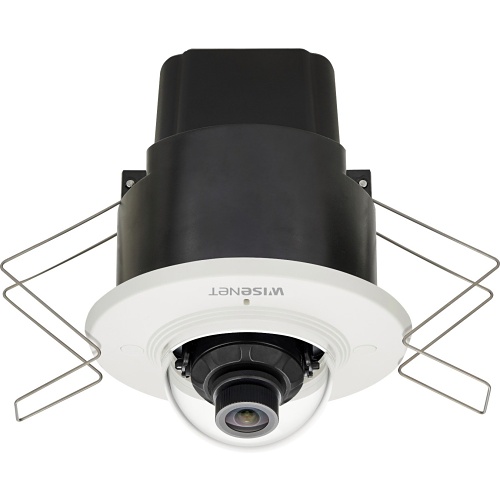

Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
XND-8020F|SQ-XND8020F
Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
XND-8020F|SQ-XND8020F
Hanwha Vision
Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
XND-8020F | SQ-XND8020F
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Wisenet X powered by Wisenet 5 network flush mount dome camera, 5MP at 30fps, 3.7mm fixed lens (97.5°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification and business analytics, built-in Mic, magnetic cover, electronic D/N, SD card, hallway view, HLC, defog detection, DIS, PoE only.
Main Features
- 5MP at 30 fps
- Triple codec H.265/H.264/MJPEG
- 3.7 mm fixed lens
- Wide dynamic range 120dB
- On-board analytics (business/audio and video)
- Digital image stabilization
- Magnetic cover and a built-in mic
- Built-in retail business intelligence analytics
- USB for easy installation
General Information
Name: Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
Category: Hanwha Vision, Video Surveillance, IP Cameras, Wireless Cameras, Dome Cameras, ADI Pro Rewards
UPC Code: 8801089125255
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number SQ-XND8020F Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XND-8020F Product Model XND-8020F Product Name 5MP Indoor Flush Mount Compact Dome Camera Product Series X Product Type Dome Camera Weight 0.6lb
Effective Camera Resolution 5MP Field of View H: 97.5°, V: 71.9°, D: 126.2° Lens Mount Type Board Mount Lens Type Fixed Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 3.7mm Video Formats H.264, H.265, MJPEG, MPEG-4
Connectivity Technology Wired Image Sensor Type CMOS Wide Dynamic Range Yes
Maximum Video Resolution 2560 x 1920
Maximum Operating Temperature 131°F Minimum Operating Temperature 14°F Operating Humidity 90% RH
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.16 lux Shortest Shutter Speed 2 Second
Network (RJ-45) Yes
Focal Length 3.7 mm Lens Included Yes Maximum Focal Length 3.7 mm
Remote Management Yes
Color Ivory Form Factor Dome Height 5.1"
Input Voltage 12V DC
Diameter 3.9" Mount Type Flush Mount
Recording Formats HD Storage Type Memory Card
Limited Warranty 3-Year
Country of Origin KR Features 2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Highlight Compensation (HLC), Privacy Masking, SD Card Local Storage, Wide Dynamic Range Indoor/Outdoor Indoor
