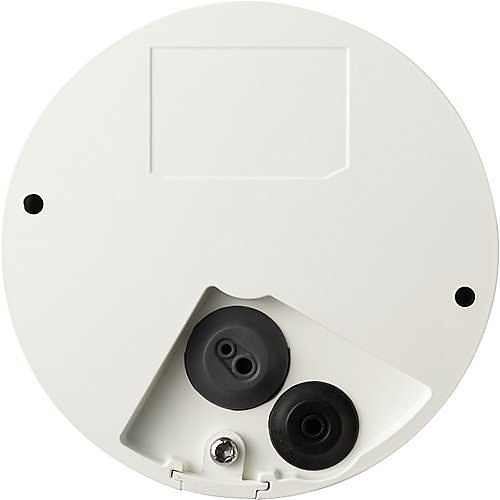

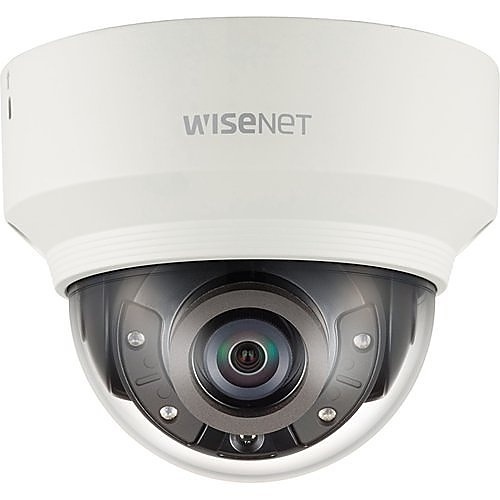

Hanwha XND-8020R X-Series 5MP IR Indoor Dome Camera, 3.7mm Fixed Lens, Ivory
XND-8020R|SQ-XND8020R
Hanwha XND-8020R X-Series 5MP IR Indoor Dome Camera, 3.7mm Fixed Lens, Ivory
XND-8020R|SQ-XND8020R
Hanwha Vision
Hanwha XND-8020R X-Series 5MP IR Indoor Dome Camera, 3.7mm Fixed Lens, Ivory
XND-8020R | SQ-XND8020R
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
WiseNet X powered by WiseNet 5 network IR indoor vandal dome camera, 5MP @30fps WDR off/on, 3.7mm fixed focal lens (97.5°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, Nema 4X
Main Features
- Built-in 3.7 mm fixed lens
- Max. 30 fpsatall resolutions (H.265/H.264)
- Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
- Motion detection, Handover
- Dual SD slots (Max. 512GB), WiseStream II support
- IR viewable length 30m, IK08
General Information
Name: Hanwha XND-8020R X-Series 5MP IR Indoor Dome Camera, 3.7mm Fixed Lens, Ivory
Category: Hanwha Vision, Video Surveillance, IP Cameras, Wireless Cameras, Dome Cameras, ADI Pro Rewards
UPC Code: 8801089125248
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number SQ-XND8020R Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XND-8020R Product Model XND-8020R Product Name 5MP Indoor IR Dome Product Series X Product Type Dome Camera Weight 0.80 lb
Effective Camera Resolution 5MP Field of View H: 97.5°, V: 71.9°, D: 126.2° Lens Type Fixed Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 3.7mm Video Formats H.264, H.265, MJPEG, MPEG-4
Connectivity Technology Wired Image Sensor Type CMOS Night Vision Distance 98 ft Wide Dynamic Range Yes
Maximum Video Resolution 3096 x 2094
Maximum Operating Temperature 131°F Minimum Operating Temperature 14°F Operating Humidity 90% RH
Minimum Illumination 0.2 lux
Network (RJ-45) Yes
Focal Length 3.7 mm Maximum Focal Length 3.7 mm
Remote Management Yes
Color Ivory Durability Impact Resistant Form Factor Dome Height 3.5"
Input Voltage 12V DC
Diameter 4.33" Mount Type Board-in Type
Recording Formats HD
Limited Warranty 3-Year
Impact Protection Rating IK08, IK10 Indoor/Outdoor Indoor
