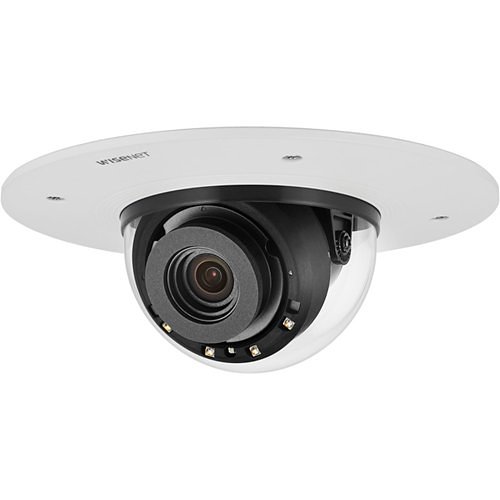

Hanwha XND-9082RF X-Series 4K Flush Mount IR IP Dome Camera, 2.8-8.4 Motorized Varifocal Lens, Signal White
Hanwha XND-9082RF X-Series 4K Flush Mount IR IP Dome Camera, 2.8-8.4 Motorized Varifocal Lens, Signal White
Hanwha XND-9082RF X-Series 4K Flush Mount IR IP Dome Camera, 2.8-8.4 Motorized Varifocal Lens, Signal White
XND-9082RF | SQ-XND9082RF
Please sign in to view pricing and availability and to add to cart.
Product Overview
The Wisenet X series powered by Wisenet 7 network indoor flush mount dome camera features a modular structure, 4K @ 30fps, motorized vari-focal lens 3x (2.8~8.4mm) (114°~40.2°). 131 foot IR viewable range for low light/no light monitoring. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include extremeWDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, , defocus detection, fog detection, DIS (Gyro), 12VDC/PoE, IP52, plenum-rated, white color. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case. Advanced cybersecurity built-in.
Main Features
- 4K resolution
- 2.8~8.4 mm(3x) motorized varifocal
- 0.05LuxatF1.2 (Color), 0Lux (B/W, IR LED on)
- Max.30fps@4K (H.265/H.264)
- IR viewable length 40m
- Day & Night (ICR), extreme WDR (120dB)
- DIS with built-in Gyro sensor
- Video Analytics
- (Defocus, Directional detection, Audio detection, Shock detection, Face/Upper body detection)
- Dual SD slots (Max. 512GB)
General Information
Specifications
ADI Part Number SQ-XND9082RF Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number XND-9082RF Product Model XND-9082RF Product Name 4K Network IR Dome Camera Product Series X Product Type Network Camera Weight 4.29lb
Effective Camera Resolution 8MP Field of View H: 114°(Wide)~40.2°(Tele) / V: 62.0°(Wide)~22.5°(Tele) / D: 133.0°(Wide)~46.3°(Tele) Lens Type Varifocal Maximum Aperture f/2.8 Maximum Frame Rate 30fps Minimum Focal Length 2.8mm Optical Zoom 3x Video Formats H.264, H.265, MJPEG Video Signal Format NTSC, PAL
Connectivity Technology Wired Image Sensor Type CMOS Night Vision Distance 131.23 ft Wide Dynamic Range Yes
Maximum Video Resolution 1600 x 1200
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -13°F (-25°C) Operating Humidity 0.95
Longest Shutter Speed 1/5 Second Minimum Illumination 0 lux Shortest Shutter Speed 1/12000 Second
Network (RJ-45) Yes
Focal Length 2.8-8.4 mm Lens Included Yes Maximum Focal Length 8.40 mm
Remote Management Yes
Color White Durability Dust Resistant, Impact Resistant Form Factor Dome
Input Voltage 12V DC
Diameter 8.1" Mount Type Flush Mount
Recording Formats HD
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
Country of Origin VN Features Audio Compression, Auto Tracking, Back Light Compensation (BLC), Built-in HLC, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Face Detection, Motion Detection, Privacy Masking, Shock Detection Impact Protection Rating IK10 Indoor/Outdoor Indoor, Outdoor
