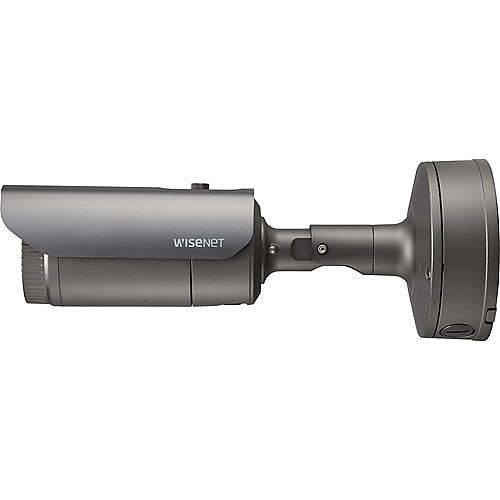

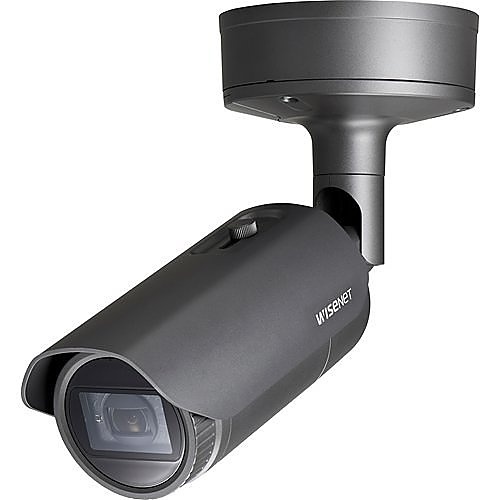

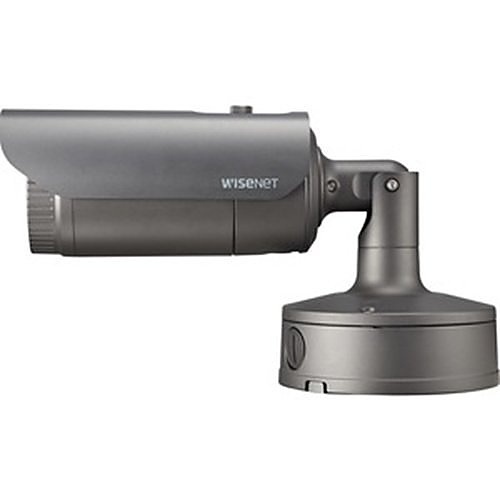

Hanwha XNO-6080R X-Series 2MP IR Bullet Camera, 2.8-12mm Varifocal Lens, Gray
XNO-6080R|SQ-XNO6080R
Hanwha XNO-6080R X-Series 2MP IR Bullet Camera, 2.8-12mm Varifocal Lens, Gray
XNO-6080R|SQ-XNO6080R
Hanwha Vision
Hanwha XNO-6080R X-Series 2MP IR Bullet Camera, 2.8-12mm Varifocal Lens, Gray
XNO-6080R | SQ-XNO6080R
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Wisenet X powered by Wisenet 5 network IR outdoor vandal dome camera, 2MP, Full HD(1080p) @60fps WDR off or @30fps WDR on, Motorized Vari-Focal Lens 4.3x (2.8~12mm) (119.5°~27.9°), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, Advanced video analytics and sound classification, High powered IR LEDs range of 164', True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, Built-in -40°F Heater
Main Features
- Max. 2MP (1920 x 1080) resolution
- 2.8 ~ 12 mm (4.3x) motorized varifocal lens
- Max. 60 fpsatall resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- Hallway view, WiseStreamII support
- IR viewable length 50m, IP67/IP66, NEMA 4X, IK10
General Information
Name: Hanwha XNO-6080R X-Series 2MP IR Bullet Camera, 2.8-12mm Varifocal Lens, Gray
Category: Hanwha Vision, Video Surveillance, IP Cameras, Wireless Cameras, Bullet Cameras, ADI Pro Rewards
UPC Code: 8801089125361
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number SQ-XNO6080R Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XNO-6080R Product Model XNO-6080R Product Name 2MP Network IR Bullet Camera Product Series X Product Type Bullet Camera Weight 4.8 lb
Effective Camera Resolution 2MP Field of View H: 119.5°-27.9°, V: 62.8°-15.7°, D: 142.1°-32.0° Lens Mount Type Board Mount Lens Type DC Auto Iris, P-iris Maximum Aperture f/1.4 Maximum Frame Rate 60fps Minimum Focal Length 2.8mm Night Vision Yes Night Vision Type Infrared Optical Zoom 4.3x Video Formats H.264, H.265, MJPEG, MPEG-4
Connectivity Technology Wired Image Sensor Type CMOS Night Vision Distance 164.04 ft Wide Dynamic Range Yes
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity 90% RH
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.015 Lux Shortest Shutter Speed 2 Second
Network (RJ-45) Yes
Focal Length 2.8-12 mm Lens Included Yes Maximum Focal Length 12 mm
Remote Management Yes
Color Gray Durability Dustproof, Impact Resistant, Waterproof Form Factor Bullet Height 14.5" Width 3.6"
Input Voltage 12V DC, 24V AC
Diameter 3.6" Mount Type Pole Mount
Recording Formats Full HD Storage Type Memory Card
Limited Warranty 3-Year
Features Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
