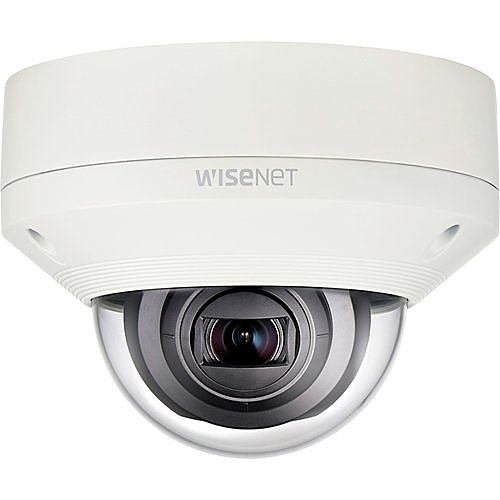

Hanwha XNV-6080 X-Series 2MP Outdoor Vandal Dome Camera, 2.8-12mm Varifocal Lens, White
XNV-6080|SQ-XNV6080
Hanwha XNV-6080 X-Series 2MP Outdoor Vandal Dome Camera, 2.8-12mm Varifocal Lens, White
XNV-6080|SQ-XNV6080
Hanwha Vision
Hanwha XNV-6080 X-Series 2MP Outdoor Vandal Dome Camera, 2.8-12mm Varifocal Lens, White
XNV-6080 | SQ-XNV6080
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Wisenet X powered by Wisenet 5 network outdoor vandal dome camera, 2MP, Full HD(1080p) @60fps WDR off or @30fps WDR on, Motorized Vari-Focal Lens 4.3x (2.8~12mm) (119.5°~27.9°), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, Advanced video analytics and sound classification, True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, Built-in -40°F Heater
Main Features
- Max. 2MP (1920 x 1080) resolution
- 2.8 ~ 12 mm (4.3x) motorized varifocal lens
- Max. 60 fpsatall resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB)
- Hallway view, WiseStreamII support, IP67/IP66, NEMA 4X, IK10
- LDC support (Lens Distortion Correction)
General Information
Name: Hanwha XNV-6080 X-Series 2MP Outdoor Vandal Dome Camera, 2.8-12mm Varifocal Lens, White
Category: Hanwha Vision, Video Surveillance, IP Cameras, Wireless Cameras, Dome Cameras, ADI Pro Rewards
UPC Code: 8801089125606
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number SQ-XNV6080 Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XNV-6080 Product Model XNV-6080 Product Name 2MP Vandal-Resistant Network Dome Camera Product Series X Product Type Dome Camera Weight 2.17lb
Effective Camera Resolution 26MP Field of View H: 119.5°-27.9°, V: 62.8°-15.7°, D: 142.1°-32.0° Lens Mount Type Board Mount Lens Type DC Auto Iris, P-iris Maximum Aperture f/1.4 Maximum Frame Rate 60fps Minimum Focal Length 2.8mm Optical Zoom 4.3x Video Formats H.264, H.265, MJPEG, MPEG-4
Connectivity Technology Wired Image Sensor Type CMOS Wide Dynamic Range Yes
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity 90% RH
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.015 Lux Shortest Shutter Speed 2 Second
Network (RJ-45) Yes
Focal Length 2.8-12 mm Lens Included Yes Maximum Focal Length 12 mm Minimum Aperture f/1.6
Remote Management Yes
Color Ivory Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof Form Factor Dome Height 4.7"
Input Voltage 12V DC, 24V AC
Diameter 6.3" Mount Type Ceiling Mount, Corner Mount, Flush Mount, Pole Mount, Wall Mount
Recording Formats Full HD Storage Type Memory Card
Limited Warranty 3-Year
Country of Origin CN|KR Features Audio Compression, Audio Detection, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance Impact Protection Rating IK10 Indoor/Outdoor Outdoor
