VIVOTEK CC9381-HV C-Series 5MP H.265 WDR Pro 180° Panoramic IP Camera, 1.45mm Lens, White, (Replaces CC8371-HV)
VIVOTEK CC9381-HV C-Series 5MP H.265 WDR Pro 180° Panoramic IP Camera, 1.45mm Lens, White, (Replaces CC8371-HV)
VIVOTEK CC9381-HV C-Series 5MP H.265 WDR Pro 180° Panoramic IP Camera, 1.45mm Lens, White, (Replaces CC8371-HV)
CC9381-HV | T6-CC9381HV
Please sign in to view pricing and availability and to add to cart.
Product Overview
High-Quality Surveillance
Along with offering amazing 180° HFOV coverage, CC9381-HV offers up to 20 fps at 5-Megapixel resolution (30 fps at 5MP with WDR Off). This Panoramic Network Camera also incorporates other value-added features. In order to combat high contrast lighting environments, WDR Pro is included and also has built-in 15M panoramic IR illuminators, ensuring 24/7 surveillance coverage.
180° Clear Night Views
The CC9381-HV also has built-in 180° IR illuminators up to 15 meters. No matter day or night, light or dark, it always provides complete video security.
Maximize Video Quality with Ultra-Low Bandwidth
Combining both H.265 and VIVOTEK Smart Stream III, the CC9381-HV can reduce bandwidth and storage consumption more than 90% compared to traditional H.264 without smart streaming.
Main Features
- H.265 Compression Technology
- 5-MP CMOS Sensor
- 20 fps at 2560x1920 (WDR On), 30 fps at 2560x1920 (WDR Off)
- 180° Horizontal Panoramic View
- 180° IR Illuminators up to 15 Meters
- WDR Pro (120 dB) to Provide Extreme Visibility in High Light Contrast Scenes

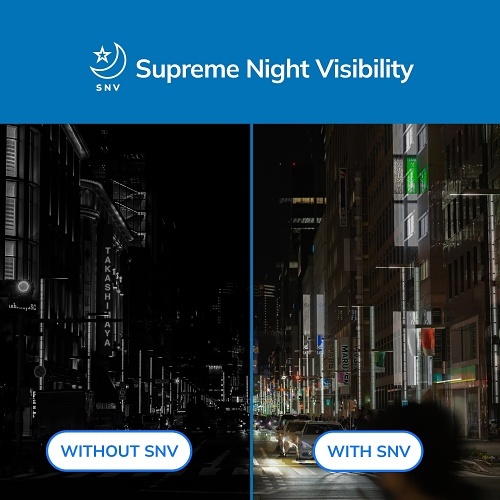

- SNV (Supreme Night Visibility) for Low Light Conditions
- Smart Stream III to Optimize Bandwidth Efficiency
- Trend Micro IoT Security
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
General Information
Specifications
ADI Part Number T6-CC9381HV Brand Name VIVOTEK Manufacturer Vivotek, Inc Manufacturer Part Number CC9381-HV NDAA Compliant Yes Product Model CC9381-HV Product Name 180° Panoramic Network Camera Product Series C Product Type Network Camera Weight 1.08lb
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View 180° Lens Type Fixed Maximum Frame Rate 30fps Minimum Focal Length 1.45mm Night Vision Yes Video Formats H.264, H.265, MJPEG
Night Vision Distance 49.21 ft Wide Dynamic Range Yes
Maximum Video Resolution 1600 x 1200
Maximum Operating Temperature 122°F (50°C) Operating Humidity 0.9
Longest Shutter Speed 1/5 Second
Network (RJ-45) Yes
Focal Length 1.4 mm Lens Included Yes Maximum Focal Length 1.45 mm
Remote Management Yes
Color White Depth 2.4" Durability Dustproof, Impact Resistant, Waterproof Form Factor Fisheye Height 6.3" Width 2.8"
Length 2.4" Mount Type Bracket Mount
Storage Type Memory Card
Limited Warranty 2-Year
Impact Protection Rating IK10 Indoor/Outdoor Outdoor Ingress Protection Rating IP66 Package Contents - 180° Panoramic Network Camera
- Quick Installation Guide
- Warranty Card
- Mounting Bracket
- Tilt Bracket
- Screw Pack
TAA Compliant Yes
