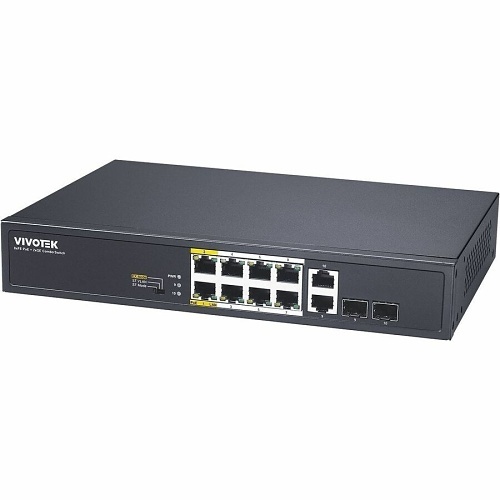

VIVOTEK AW-FGT-100D-120 Unmanaged 8xFE PoE + 2xGE Combo Switch
VIVOTEK AW-FGT-100D-120 Unmanaged 8xFE PoE + 2xGE Combo Switch
VIVOTEK AW-FGT-100D-120 Unmanaged 8xFE PoE + 2xGE Combo Switch
AW-FGT-100D-120 | T6-FGT100D12
Please sign in to view pricing and availability and to add to cart.
Product Overview
The AW-FGT-100D-120 quipped with DIP switch provides EX mode, ST VLAN, and ST mode. Especially designed for IP Surveillance applications, the camera provides standard 802.3af/at PoE functions in ST mode, while EX mode transmits data & power on one single cable up to 250 meters via EX ports for long-reach PoE IP cameras. The Commercial series adds an extra 20% range of input voltage tolerance(280VAC 4hrs, 300VAC 1 min), lightning surge protection of AC power & PoE surge protection to prevent the damage caused by outside unstable AC power, lightning surge, and power spikes. These unique features reduce costs associated with the replacement of damaged units.
Main Features
- Effectively increases available bandwidth on your network
- Quickly and easily set up a wired network with 10 networking ports
- Power Supply power source for required power supply to ensure maximum efficiency
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
General Information
Specifications
ADI Part Number T6-FGT100D12 Brand Name VIVOTEK Manufacturer Vivotek, Inc Manufacturer Part Number AW-FGT-100D-120 Product Model AW-FGT-100D-120 Product Name AW-FGT-100D-120 Unmanaged 8xFE PoE + 2xGE Combo Switch Product Type Ethernet Switch Weight 3.40lb
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 120W
Expansion Slot Type SFP (mini-GBIC) Number of SFP Slots 2 Number of SFP+ Slots 2 Number of Total Expansion Slots 2 Shared SFP Slot Yes
Modular Yes Network (RJ-45) Yes Total Number of Network Ports 10
Manageable No
Network Technology 10/100/1000Base-T, 10/100Base-T, 1000Base-X
Ethernet Technology 10 Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3af, IEEE 802.3at
Height 1.7" Width 7.1"
Input Voltage 120V AC, 230V AC PoE (RJ-45) Port Yes PoE Budget 115W Power Source Power Supply
Length 10.6"
