Eaton Tripp Lite
Eaton Tripp Lite 4POSTRAILSM
4POSTRAILSM | TC-4POSTRIL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

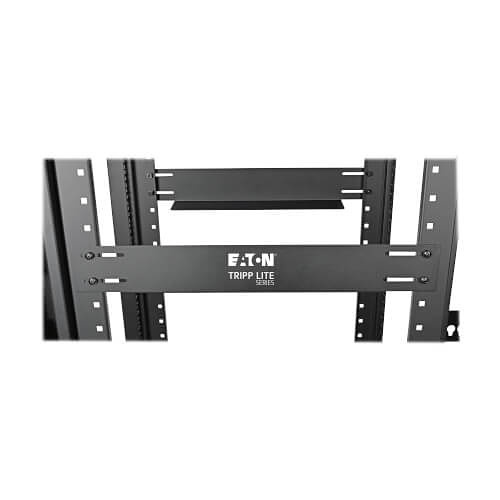

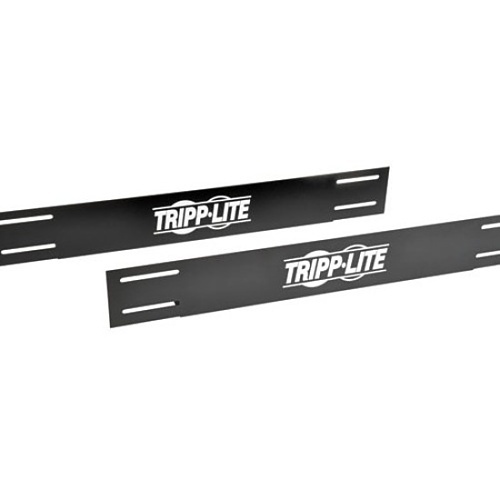

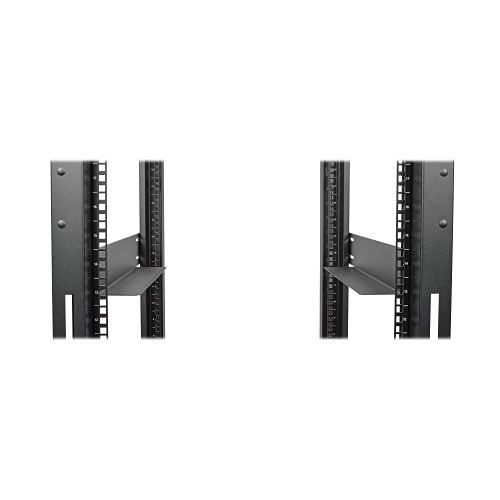

The 4POSTRAILSM 4-Post Rack-Mount Installation Kit supports heavy UPS systems in your EIA-standard four-post rack. The two L brackets mount to the outside edges of the rack's vertical mounting rails - the edges facing the side panels - using the rails' square mounting holes. Attaching the 4POSTRAILSM to the side leaves your front and rear mounting holes free for equipment. The brackets support up to 250 lbs (113.4 kgs) and are compatible with four-post racks with a mounting depth of 16.5 to 21.5 inches. In addition to UPS systems, the 4POSTRAILSM is compatible with other heavy networking or power protection equipment with a rectangular chassis of 17.5 inches in width. Rack-attachment hardware for square-hole mounting is included.
Main Features
- Extra support for heavy UPS systems
- Installs on outside edges of rack's vertical rails
- Compatible with EIA-standard 4-Post racks
- Mounting depths of 16.5-21.5 inches
- Leaves front and rear holes free for equipment
- Supports up to 250 lbs (113.4 kgs)
- Supports 17.5" wide equipment
- Includes rack-attachment hardware for square holes
General Information
Name: Eaton Tripp Lite 4POSTRAILSM
Category: Eaton Tripp Lite, Data Comm & Networking, Racks & Enclosures, Rack Accessories
UPC Code:
Country of Origin: . Country of origin is subject to change.
