Product Overview

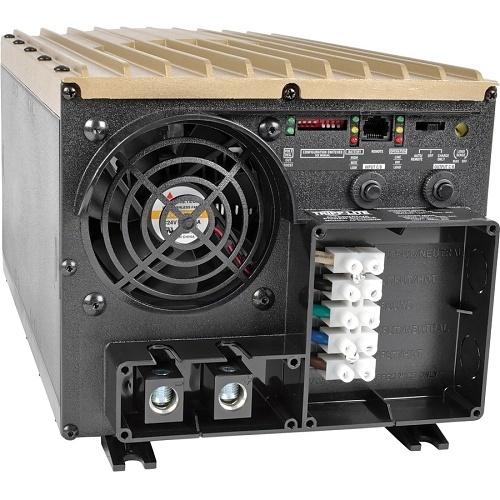

The APSINT3636VR 3600W APS INT Series 36V DC 230V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools, pumps and portable lighting to laptop computers and sensitive monitoring equipment. With no fumes, fuel or excess noise, it's an excellent alternative to generator power. The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 3600W of continuous power, 5400W up to one hour or 7200W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.Designed for easy installation in RVs, commercial and fleet vehicles, emergency vehicles and construction equipment, the APSINT3636VR converts stored power from any 36V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 230V AC source, the unit keeps the user-supplied battery charged via a three-stage 7.5/30A selectable charging system while simultaneously delivering AC power to connected equipment.When used as a UPS, the APSINT3636VR's automatic voltage regulation feature protects your equipment against blackouts, brownouts, surges and line noise. The APSRM4 module with “traffic light” LEDs is included to provide complete remote monitoring and control of the unit.
Main Features
- 3600W Continuous Power, 5400W reserve, 7200W peak for surge demands
- Generates stable 230V AC Power from 36V battery bank
- Ideal for RVs, emergency vehicles, and construction equipment
- Functions as inverter, AC Power source, or extended-run UPS
- Automatic overload detection and Resettable AC circuit breakers
- Corrects brownouts and overvoltages with AVR technology
- 20 ms transfer relay for blackout protection
- Selectable 3-stage battery charger with overcharge protection
- Remote monitoring with included APSRM4 module
- Rugged polycarbonate Housing resists moisture and impact
General Information
Name: Eaton Tripp Lite APSINT3636VR
Category: Eaton Tripp Lite, Batteries & Power Supplies, Power Management, Power Inverters
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number TC-APSINT363 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number APSINT3636VR Product Line PowerVerter Product Model APSINT3636VR Product Name APS PowerVerter INT APSINT3636VR Power Inverter With Charger Product Series APS Product Type Power Inverter Weight 61lb
Output Voltage 230V AC, 36V DC
Receptacles Hardwired
Color Black Depth 16.3" Height 7.3" Width 8.5"
Continuous Power Load 3600 W Input Voltage 230V AC, 36V DC Maximum Frequency 50 Hz Peak Power Load 7200W Plug/Connector Type Hardwired Waveform Type Pulse-width Modulated Sine Wave
Limited Warranty 1-Year

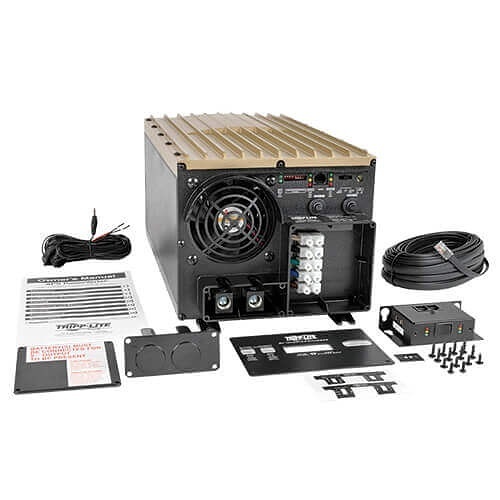

Compatibility Compatible with marine, automotive, telecom, computer, emergency and a variety of other applications. Environmental Certification RoHS Environmentally Friendly Yes Package Contents - APSINT3636VR 3600W APS INT Series 36V DC 230V AC Inverter/Charger
- APSRM4 remote control module
- Owner’s manual
