Eaton Tripp Lite APSWX6KP48VMPPT 5500W / 48VDC / 230V Sine Wave Solar Inverter / Charger, 90A MPPT Solar Charge Controller, Parallel Operation, Hardwire Input / Output

Eaton Tripp Lite APSWX6KP48VMPPT 5500W / 48VDC / 230V Sine Wave Solar Inverter / Charger, 90A MPPT Solar Charge Controller, Parallel Operation, Hardwire Input / Output

Eaton Tripp Lite APSWX6KP48VMPPT 5500W / 48VDC / 230V Sine Wave Solar Inverter / Charger, 90A MPPT Solar Charge Controller, Parallel Operation, Hardwire Input / Output
APSWX6KP48VMPPT | TC-APSWX6KP4
Please sign in to view pricing and availability and to add to cart.
Product Overview
Converts solar energy into usable electricity, manages the flow of energy between solar panels, batteries, and the electrical grid, and provides backup power during outages. This pure sine wave hybrid inverter/charger intelligently manages power coming from your solar panels, batteries, and the utility grid all at the same time. It can allow for grid-tied operation and efficiently converts DC power from solar panels into AC power for immediate use or for energy storage in batteries, and vice versa. It converts stored power from any 48V DC battery source to network-grade AC power for sensitive electronics, including computers and laptops, network and audio/video equipment or office and household appliances. Recommended for rural and residential environments, telecommunications, gas and oil exploration, mining, forestry and other industries with remote sites. The APSWX6KP48VMPPT is an excellent solution for energy savings in grid-tied and off-grid environments. With built-in MPPT (Maximum Power Point Tracking) the APSWX6KP48VMPPT tracks and adjusts to the optimal point of power generation, resulting in increased energy production from the solar panels. This also improves the overall efficiency of the solar system, even in low-light conditions, resulting in consistent energy production throughout the day. The APSWX6KP48VMPPT uses priority source selection to alternate between utility and solar power when charging batteries, depending on which is optimal at that time. When powering a 230VAC connected load, the inverter will alternate between utility, solar and battery power. An automatic overload detector, cooling fan and resettable AC circuit breakers help protect the unit from damage.
Main Features
- 5500W Continuous, 11000W peak Power output
- 90A MPPT solar charge controller for efficiency
- Supports grid-tied and off-grid operation
- Pure sine wave Output for sensitive electronics
- Automatic source switching for optimal Power
- Configurable for single or 3-Phase parallel connection
- Hardwired installation with high-current DC terminals

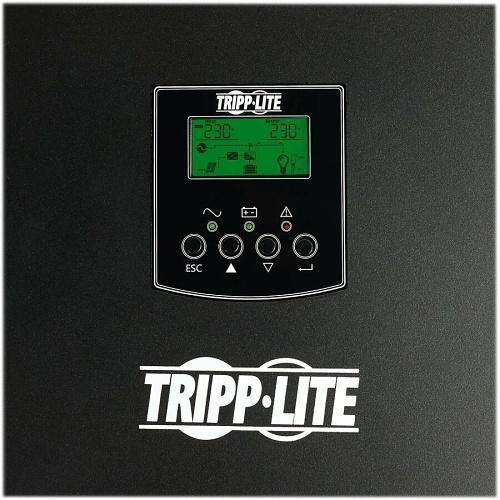

- Real-time system monitoring via LCD panel
- Five-way fault protection for safety
- Compatible with various photovoltaic solar panels
General Information
Specifications
ADI Part Number TC-APSWX6KP4 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number APSWX6KP48VMPPT Product Model APSWX6KP48VMPPT Product Name APSWX6KP48VMPPT Sine Wave Solar Inverter/Charger Product Series APSWX Product Type Solar Inverter Weight 22.50lb
Output Voltage 230V AC
Receptacles Hardwired
Depth 4.7" Height 18.5" Width 11.6"
Continuous Power Load 5500 W Input Voltage 230V AC, 48V DC Maximum Frequency 65 Hz Minimum Frequency 47Hz Peak Power Load 11kW Plug/Connector Type Hardwired Waveform Type Sine Wave
Limited Warranty 2-Year

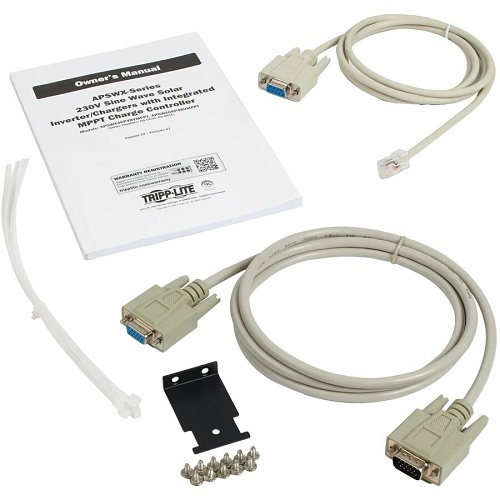

Certifications & Standards EN 61000 IEC 62109-1 IEC 62109-2 CE (Europe) UKCA Environmental Certification REACH, RoHS Environmentally Friendly Yes Package Contents - APSWX6KP48VMPPT Sine Wave Solar Inverter/Charger
- DB15 parallel cable
- DB9-to-RJ45 RS-232 cable
- AC wire retention kit (bracket and hardware)
- Mounting brackets and screws
- Owner's manual
