Eaton Tripp Lite B126-1A1-POC Eaton Tripp Lite HDMI Over Cat5/Cat6 Active Extender Kit Audio Video 1080p 125ft
B126-1A1-POC|TC-B1261A1PO
Eaton Tripp Lite B126-1A1-POC Eaton Tripp Lite HDMI Over Cat5/Cat6 Active Extender Kit Audio Video 1080p 125ft
B126-1A1-POC|TC-B1261A1PO
Eaton Tripp Lite
Eaton Tripp Lite B126-1A1-POC Eaton Tripp Lite HDMI Over Cat5/Cat6 Active Extender Kit Audio Video 1080p 125ft
B126-1A1-POC | TC-B1261A1PO
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The B126-1A1-POC HDMI over CAT5 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to a projector, monitor or television. The kit is ideal for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow. HDMI cable connects an optional local display and the audio/video source, such as a media server, to the transmitter's HDMI ports and a remote display to the receiver. CAT5e/6/6a cable connects the two units (for best results, use 24AWG solid-wire CAT5e/6 cable, such as N202-Series). Built-in Power over Cable (PoC) technology powers the receiver over CAT5e/6/6A cable, so no external power supply on the display side is needed. The B126-1A1-POC can extend a high-definition 1080p (at 60 Hz) signal up to 125' (38.1m). In addition to crystal-clear video, the B126-1A1-POC delivers full, rich stereo and 7.1-Channel surround sound (multi-channel or PCM). Built-in equalization control lets you fine-tune the image quality at the remote display. Supports 24-Bit True Color (8-Bit per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.
Main Features
- Extends 1080p signal up to 125 ft

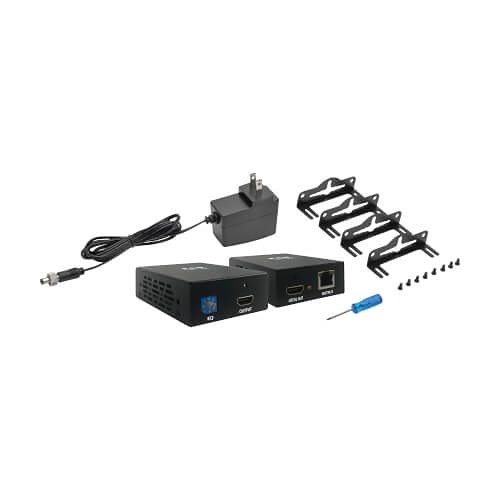

- Includes transmitter and receiver units
- Supports stereo and 7.1-channel surround sound
- Built-in Power over Cable (POC) technology
- Plug-and-play, no software needed
- Supports 24-bit True Color and HDCP
- Easy installation with mounting hardware
- LED indicators for power and signal status
- Complies with Federal Trade Agreements Act (TAA)
General Information
Name: Eaton Tripp Lite B126-1A1-POC Eaton Tripp Lite HDMI Over Cat5/Cat6 Active Extender Kit Audio Video 1080p 125ft
Category: Eaton Tripp Lite, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Extenders, Pro HDMI Extenders
UPC Code: 037332193117
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number TC-B1261A1PO Brand Name Eaton Tripp Lite Manufacturer Tripp Lite Manufacturer Part Number B126-1A1-POC Product Model B126-1A1-POC Product Name B126-1A1-POC Video Extender Transmitter/Receiver Product Type Video Extender Transmitter/Receiver
Cable Type Category 6a Maximum Operating Distance 125' Media Type Supported Twisted Pair Number of Input Devices Supported 1 Number of Output Devices Supported 1
Connectivity Technology Wired
TAA Compliant Yes
Maximum Video Resolution 1920 x 1080
Network (RJ-45) Yes Number of HDMI Inputs 1 Number of HDMI Outputs 2 Number of Network (RJ-45) Ports 2
Form Factor Pole Mount, Rack Mount, Wall Mount
Graphics Modes Full HD
Limited Warranty 1-Year
Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes
