Tripp Lite N390X-03M-8L-AP 400G Singlemode 9/125 OS2 Switchable Fiber Optic Cable, 12F MTP/MPO-APC to 4x Duplex LC/UPC F/M, LSZH, 3m (9.8'), Yellow
Tripp Lite N390X-03M-8L-AP 400G Singlemode 9/125 OS2 Switchable Fiber Optic Cable, 12F MTP/MPO-APC to 4x Duplex LC/UPC F/M, LSZH, 3m (9.8'), Yellow
Tripp Lite N390X-03M-8L-AP 400G Singlemode 9/125 OS2 Switchable Fiber Optic Cable, 12F MTP/MPO-APC to 4x Duplex LC/UPC F/M, LSZH, 3m (9.8'), Yellow
N390X-03M-8L-AP | TC-N390X03M8
Please sign in to view pricing and availability and to add to cart.
Product Overview
40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking
The N390X-03M-8L-AP is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This singlemode 9/125 OS2 cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 1550 nm. The breakout cable also eliminates the need for long fan-out cables or long individual duplex cable runs.
Switchable Connectors Allow Easy Polarity Conversions
The switchable LC/UPC duplex ends let you easily switch the fiber polarity without tools or the need to re-terminate the connectors.
100% Tested for Low Insertion Loss and Back Reflection

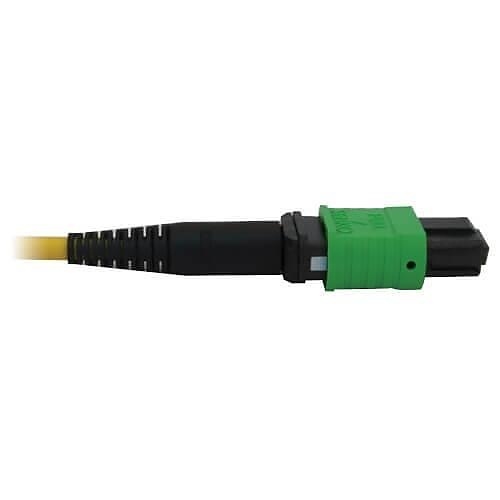

The 12-fiber MTP/MPO APC connector with a green housing helps minimize back reflection with low insertion loss. The connector's slim boot is designed for easy cable management.
Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
Main Features
- Supports 400GB Ethernet speeds for high-density networking
- Ideal for 100GB Ethernet applications up to 100m
- Switchable LC/UPC duplex ends for easy polarity conversions
- 12-fiber MTP/MPO APC Connector minimizes back reflection
- Yellow jacket for easy identification and reduced misidentification
- LSZH Jacket limits toxic smoke emission in case of combustion
General Information
Specifications
ADI Part Number TC-N390X03M8 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number N390X03M8LAP Product Model N390X-03M-8L-AP Product Name N390X-03M-8L-AP Fiber Optic Duplex Network Cable Product Type Network Cable
Cable Type Fiber Optic Connector on First End 1 x MTP/MPO Female Network, 12- Connector on Second End LC Male Network Core/Cladding Diameter 9/125 µm Device Supported Network Device, Patch Panel, Switch Fiber Category OS2 Fiber Count 2 Fiber Optic Mode Single-mode Jacket Type LSZH, OFNR Solid or Stranded Stranded
Data Transfer Rate 400 Gbit/s
Cable Length 8' Color Green, Yellow Jacket Material LSZH
Limited Warranty Lifetime
Country of Origin CN Environmental Certification REACH, RoHS, UL Environmentally Friendly Yes Features Angled Physical Contact (APC), Bendable, Push-Pull Tab, Stranded Package Contents - N390X-03M-8L-AP 400G Singlemode 9/125 OS2 Switchable Fiber Optic Cable, Yellow, 3 m (9.8 ft.)
