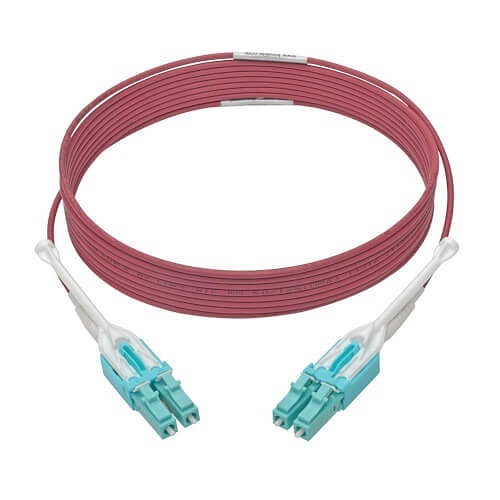

Eaton Tripp Lite N821-03M-MG-T 10G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable, LC/LC, Push / Pull Tabs, 3m, Magenta
N821-03M-MG-T|TC-N82103MMG
Eaton Tripp Lite N821-03M-MG-T 10G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable, LC/LC, Push / Pull Tabs, 3m, Magenta
N821-03M-MG-T|TC-N82103MMG
Eaton Tripp Lite
Eaton Tripp Lite N821-03M-MG-T 10G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable, LC/LC, Push / Pull Tabs, 3m, Magenta
N821-03M-MG-T | TC-N82103MMG
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The N821-03M-MG-T 10 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable is OM4-rated for use with 10Gb Ethernet applications up to 400 meters (at 850 nm). Suited for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers, this low-cost cable provides four times more bandwidth than conventional 62.5 µm multimode fiber and performance rivaling that of singlemode cable. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. Dual male LC connectors are widely compatible and thoroughly tested to meet stringent insertion loss standards. Premium-grade ceramic ferrules are designed specifically to handle applications of 10Gb or higher. Colored magenta for immediate identification as an OM4 cable, the laser-optimized multimode fiber (LOMMF) N821-03M-MG-T is backward compatible with existing 50/125 fiber and commonly used with vertical-cavity surface-emitting laser (VCSEL) and LED laser light sources. The low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making this cable perfect for poorly ventilated areas. The slim, space-saving uniboot design is easy to manage through ceilings, walls and ducts. The sturdy plastic housing is built to last a long time.
Main Features
- OM4-rated for 10 Gb Ethernet applications
- Magenta color for easy OM4 identification
- Allows 10 Gb serial transmission up to 400 m
- Recommended for LANs, SANs, and data centers
- Provides 4x more bandwidth than 62.5 µm fiber
- Compatible with VCSEL and LED laser sources
- Backward compatible with existing 50/125 fiber

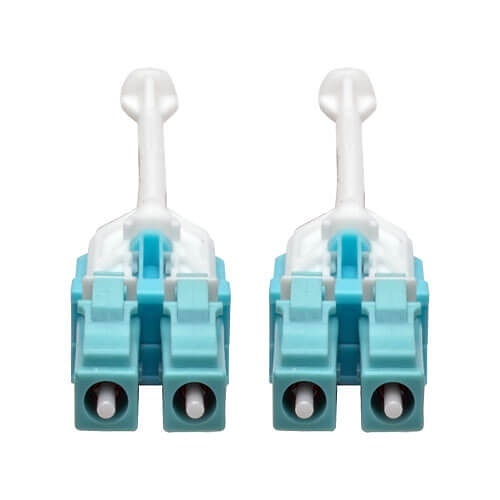

- Push/pull tab connectors for easy handling
- Premium-grade ceramic ferrules for high-speed use
- Low-smoke zero-halogen jacket for safety
General Information
Name: Eaton Tripp Lite N821-03M-MG-T 10G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable, LC/LC, Push / Pull Tabs, 3m, Magenta
Category: Eaton Tripp Lite, Wire & Cable, Fiber Optic Cables, Fiber Optic Patch Cables
UPC Code: 037332201683
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number TC-N82103MMG Brand Name Eaton Tripp Lite Manufacturer Tripp Lite Manufacturer Part Number N821-03M-MG-T Product Model N821-03M-MG-T Product Name N821-03M-MG-T Fiber Optic Network Cable Product Type Network Cable
Cable Type Fiber Optic Connector on First End 2 x LC Male Network Connector on Second End 2 x LC Male Network Core/Cladding Diameter 50/125 µm Device Supported Network Device Fiber Optic Mode Multimode Shielding Dual
Cable Length 10' Color Magenta Jacket Material LSZH
Limited Warranty Lifetime
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features Halogen Free, Uniboot Connector Package Contents - N821-03M-MG-T 10 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable, 3 m (10 ft.)
