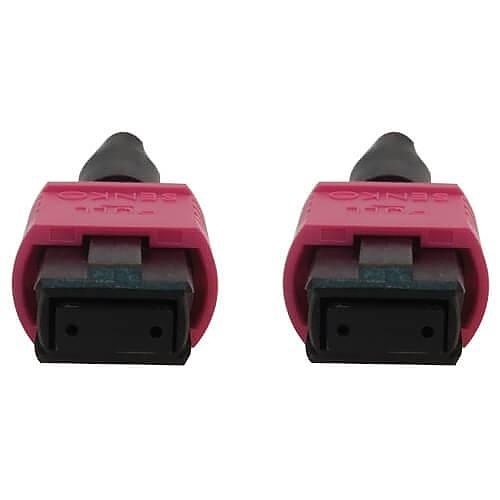

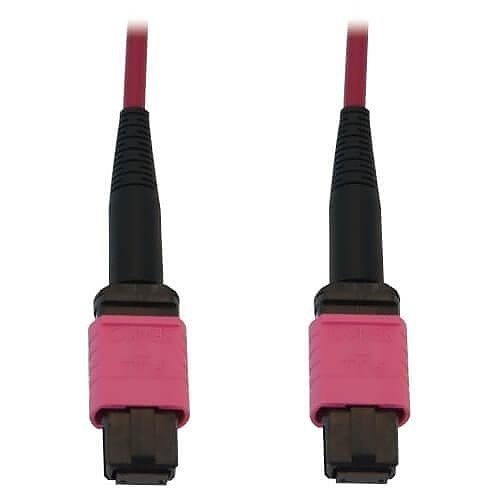

Eaton Tripp Lite N845B-01M-12-MG Fiber Optic Patch Cable, 1 Meter Multimode MPO/MPO
Eaton Tripp Lite N845B-01M-12-MG Fiber Optic Patch Cable, 1 Meter Multimode MPO/MPO
Eaton Tripp Lite N845B-01M-12-MG Fiber Optic Patch Cable, 1 Meter Multimode MPO/MPO
N845B-01M-12-MG | TC-N845B01M1
Please sign in to view pricing and availability and to add to cart.
Product Overview
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors' slim boots allow easy one-handed installation and removal of the cable.
Main Features
- Supports 40/100 GbE for high-density networking
- Ideal for 100G Ethernet up to 100 m
- Backward compatible with 10 Gb and 25 Gb networks
- Magenta jacket prevents misidentification
- LSZH Jacket reduces toxic smoke emissions
- Slim boots for easy installation and removal
General Information
Specifications
ADI Part Number TC-N845B01M1 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number N845B01M12MG Product Model N845B-01M-12-MG Product Name N845B-01M-12-MG Fiber Optic Network Cable Product Type Network Cable
Cable Type Fiber Optic Connector on First End 1 x MTP/MPO Female Network, 12- Connector on Second End 1 x MTP/MPO Female Network, 12- Core/Cladding Diameter 50/125 µm Device Supported Network Device, Patch Panel, Switch Fiber Category OM4 Fiber Count 12 Fiber Optic Mode Multimode Jacket Type LSZH, OFNR Solid or Stranded Stranded
Data Transfer Rate 400 Gbit/s
Cable Length 3.28' Color Magenta Jacket Material LSZH
Limited Warranty Lifetime
Compatibility For devices and fiber cables Country of Origin CN Environmental Certification REACH, RoHS, UL Environmentally Friendly Yes Features Bendable, Polished Connector (PC), Push-Pull Tab, Stranded Package Contents - N845B-01M-12-MG 100G Multimode 50/125 OM4 Fiber Optic Cable, Magenta, 1 m (3.3 ft.)
