Eaton Tripp Lite PDU1215 1.8kW 120V Single Phase Basic PDU, 13 NEMA 5-15R Outlets, NEMA 5-15P Inlet, 15' Cord, 1U Rack Mount
PDU1215|TC-PDU1215
Eaton Tripp Lite PDU1215 1.8kW 120V Single Phase Basic PDU, 13 NEMA 5-15R Outlets, NEMA 5-15P Inlet, 15' Cord, 1U Rack Mount
PDU1215|TC-PDU1215
Eaton Tripp Lite
Eaton Tripp Lite PDU1215 1.8kW 120V Single Phase Basic PDU, 13 NEMA 5-15R Outlets, NEMA 5-15P Inlet, 15' Cord, 1U Rack Mount
PDU1215 | TC-PDU1215
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

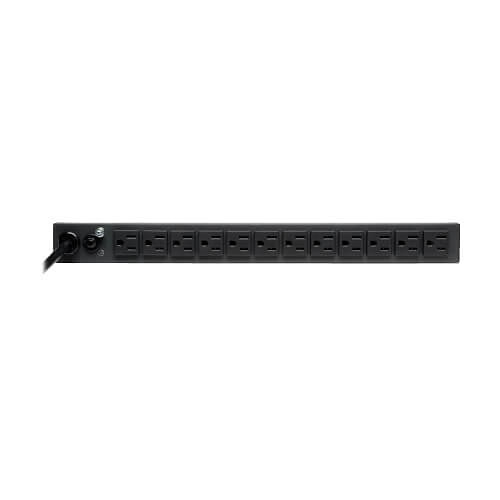

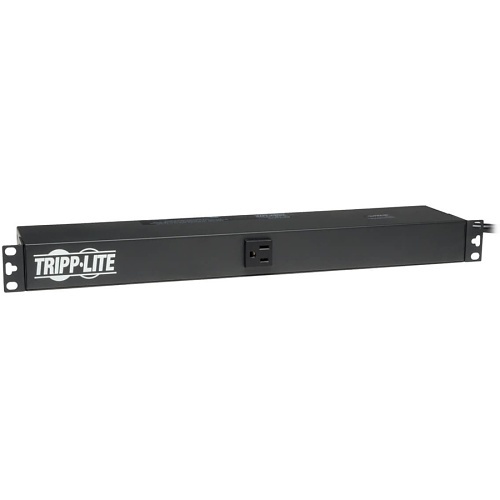

The PDU1215 1.8kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1215 features a single breakered load bank with 13 NEMA 5-15R outlets—12 in the rear and one in front. The NEMA 5-15P input plug with long 15' (4.6m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment. The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 15A circuit breaker protects connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19" racks, as well as on a wall or workbench or under a counter. With a compatible rack and a PDUSIDEBRKT accessory (sold separately), you can adapt the PDU1215 for vertical 0U rack-mounting.
Main Features
- 1.8kW Single-Phase Power Distribution
- 13 NEMA 5-15R Outlets
- 15A Circuit Breaker for Overload Protection

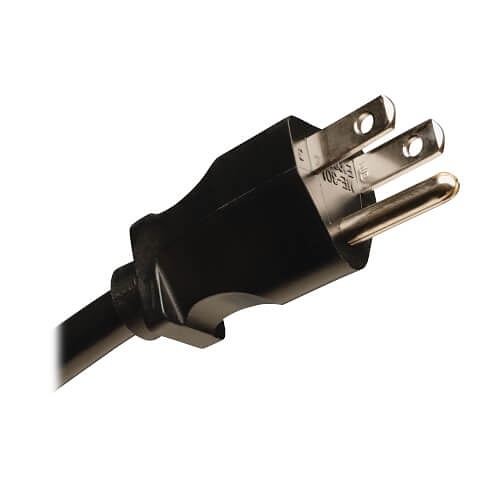

- 15' NEMA 5-15P Input Cord
- 1U Rack-Mount Design
- Switchless Design to Prevent Shutdowns
- Versatile Installation Options
- Reversible All-Metal Housing
- Toolless 0U Vertical Installation Ready
General Information
Name: Eaton Tripp Lite PDU1215 1.8kW 120V Single Phase Basic PDU, 13 NEMA 5-15R Outlets, NEMA 5-15P Inlet, 15' Cord, 1U Rack Mount
Category: Eaton Tripp Lite, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 037332116727
Country of Origin: CN. Country of origin is subject to change.
Specifications
ADI Part Number TC-PDU1215 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number PDU1215 Packaged Quantity 1 Product Model PDU1215 Product Name PDU1215 PDU Basic 120V 15A 13 Outlet Product Type PDU Weight 4.90lb
Output Voltage 120V AC PDU Type Basic Phase Single Phase Receptacle Detail 13 x NEMA 5-15R Receptacle Type NEMA 5-15R
Network (RJ-45) Yes
Depth 4.5" Height 2" Mounting Orientation Horizontal Rack Height 1U Width 20"
Input Current 15A Input Voltage 120V AC Plug/Connector Type NEMA 5-15P
Mount Type Rack Mount
Limited Warranty 5-Year
Environmental Certification RoHS Environmentally Friendly Yes Features RETIE (Colombia); CAN/CSA-22.2 No. 308-14 (Canada); NOM (Mexico); UL 1363 Package Contents - PDU1215 1.8kW Single-Phase 120V Basic PDU
- Mounting hardware
- Owner’s manual
