Eaton Tripp Lite PDU3EVN6L2130B 3-Phase Power Distribution Unit, 6-Outlets, 19" Rack Mount, 30A, 208V, Black
PDU3EVN6L2130B|TC-PDU3EV6L
Eaton Tripp Lite PDU3EVN6L2130B 3-Phase Power Distribution Unit, 6-Outlets, 19" Rack Mount, 30A, 208V, Black
PDU3EVN6L2130B|TC-PDU3EV6L
Eaton Tripp Lite
Eaton Tripp Lite PDU3EVN6L2130B 3-Phase Power Distribution Unit, 6-Outlets, 19" Rack Mount, 30A, 208V, Black
PDU3EVN6L2130B | TC-PDU3EV6L
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

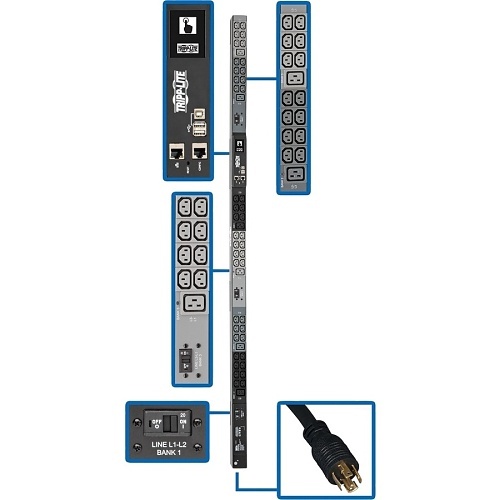

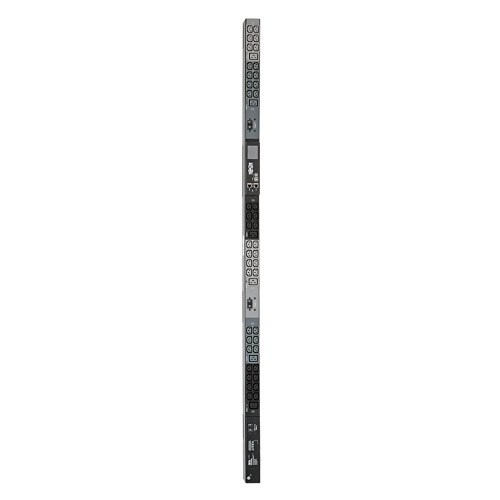

The PDU3EVN6L2130B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, it features 48 outlets—42 C13, 6 C19—with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 6' (1.83m) cord with NEMA L21-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device. The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Main Features
- 10kW 200-240V 3-Phase monitored PDU
- 48 Outlets with 42 C13 and 6 C19 receptacles
- NEMA L21-30P Plug with 1.8m cord
- Built-in GbE-capable LX interface
- Supports IPv4, IPv6, HTTP, HTTPS, and more

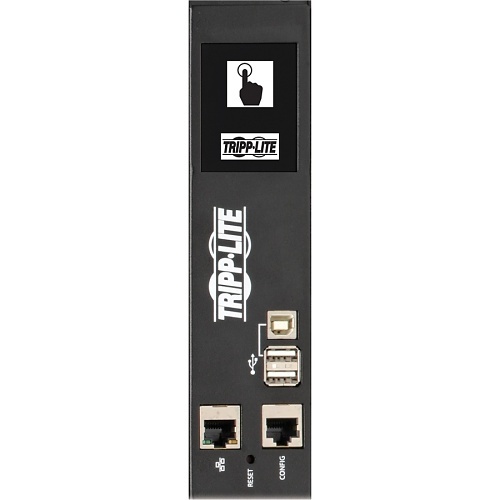

- Color touchscreen LCD with +/-1% accuracy

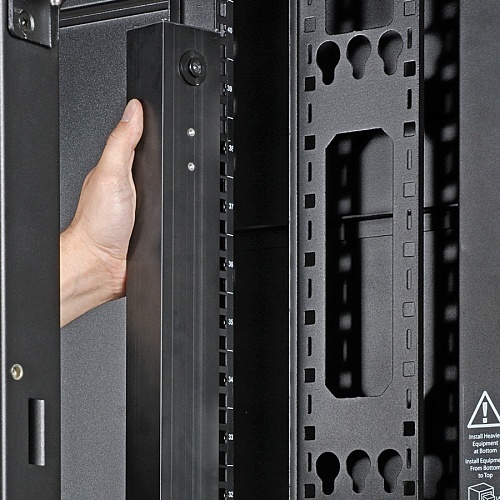

- Toolless 0U installation in 19" racks
General Information
Name: Eaton Tripp Lite PDU3EVN6L2130B 3-Phase Power Distribution Unit, 6-Outlets, 19" Rack Mount, 30A, 208V, Black
Category: Eaton Tripp Lite, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number TC-PDU3EV6L Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number PDU3EVN6L2130B Product Model PDU3EVN6L2130B Product Name PDU3EVN6L2130B 48-Outlet PDU Product Type PDU Weight 15.69lb
Output Voltage 200V AC, 208V AC, 240V AC PDU Type Monitored Phase Three Phase Receptacle Detail 42 x IEC 60320 C13, 6 x IEC 60320 C19 Receptacle Type IEC 60320 C13, IEC 60320 C19
Network (RJ-45) Yes
Depth 2.9" Height 70" Mounting Orientation Vertical Rack Height 0U Width 2.2"
Input Current 24A Input Voltage 230V AC Plug/Connector Type NEMA L21-30P
Mount Type Rack Mount Protection Type Overload Protection
Limited Warranty 2-Year
Country of Origin TW Environmentally Friendly Yes Package Contents - PDU3EVN6L2130B 10kW 3-Phase Monitored PDU
- Configuration cable
- Rack-mounting hardware
- PDUMVROTATEBRKT mounting bracket accessory
- (48) Plug-lock insert sleeves
- Owner’s manual
