Eaton Tripp Lite PDUMH30AT 2U 2.9kW Metered ATS PDU, 2 L5-30P Inputs, 24 5-15/20R + 1 L5-30R Outlets, Black
PDUMH30AT|TC-PDUMH30AT
Eaton Tripp Lite PDUMH30AT 2U 2.9kW Metered ATS PDU, 2 L5-30P Inputs, 24 5-15/20R + 1 L5-30R Outlets, Black
PDUMH30AT|TC-PDUMH30AT
Eaton Tripp Lite
Eaton Tripp Lite PDUMH30AT 2U 2.9kW Metered ATS PDU, 2 L5-30P Inputs, 24 5-15/20R + 1 L5-30R Outlets, Black
PDUMH30AT | TC-PDUMH30AT
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

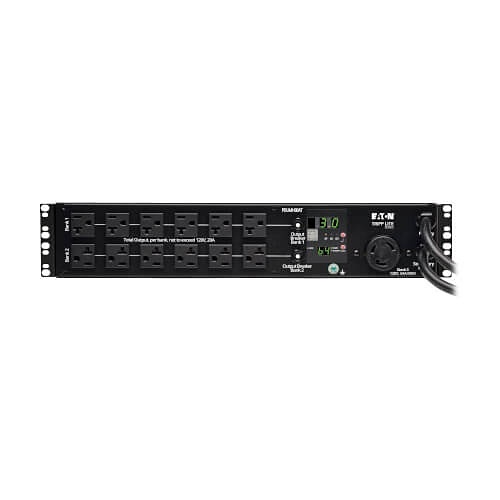

Introducing the Tripp Lite by Eaton 2.9kW Single-Phase Local Metered Automatic Transfer Switch PDU, designed for seamless power management in your critical applications. This robust unit features two 120V L5-30P inputs and offers a total of 24 versatile 5-15/20R outputs along with one L5-30R output, ensuring ample connectivity for your devices. With a compact 2U design, it fits perfectly in standard racks, making it an ideal choice for data centers and server rooms. Enhance your power reliability and efficiency with this high-performance PDU. Don't miss out on securing your power needs—order yours today!
Main Features
- 2.9kW Single-Phase Local Metered ATS PDU
- Redundant A/B Power for non-redundant equipment

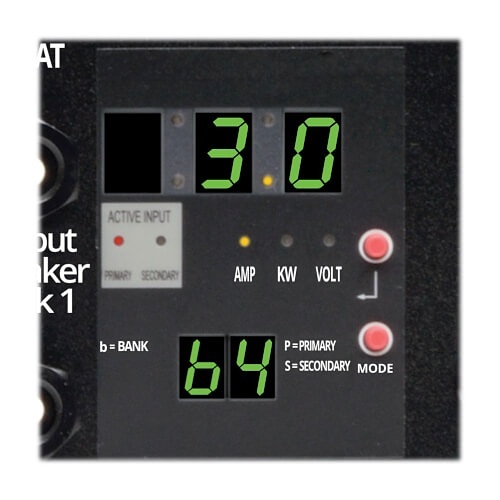

- Visual meter for amp, kW, and voltage reporting
- 2U Rack-mount form factor with 11.9" depth
- 25 Outlets; 24 5-15/20R, 1 L5-30R
- Two 10' NEMA L5-30P Input line cords
- Fast 1-5 ms transfer between inputs
- Fault-tolerant, hot-swappable UPS protection
- Advanced ATS configurations supported
General Information
Name: Eaton Tripp Lite PDUMH30AT 2U 2.9kW Metered ATS PDU, 2 L5-30P Inputs, 24 5-15/20R + 1 L5-30R Outlets, Black
Category: Eaton Tripp Lite, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 037332157287
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number TC-PDUMH30AT Brand Name Eaton Tripp Lite Manufacturer Tripp Lite Manufacturer Part Number PDUMH30AT Product Model PDUMH30AT Product Name Metered PDUMH30AT 25-Outlets PDU Product Series Metered Product Type PDU
Receptacle Detail 1 x NEMA L5-30R, 24 x NEMA 5-15/20R Receptacle Type NEMA 5-15/20R, NEMA L5-30R
TAA Compliant Yes
Depth 13" Mounting Orientation Horizontal Rack Height 2U Width 18"
Input Voltage 120V AC Plug/Connector Type NEMA L5-30P
Mount Type Rack Mount, Wall Mount
Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Package Contents - ATS / Local Metered PDU
- Rackmount installation brackets
- Installable plug-retention shelves & cable ties
