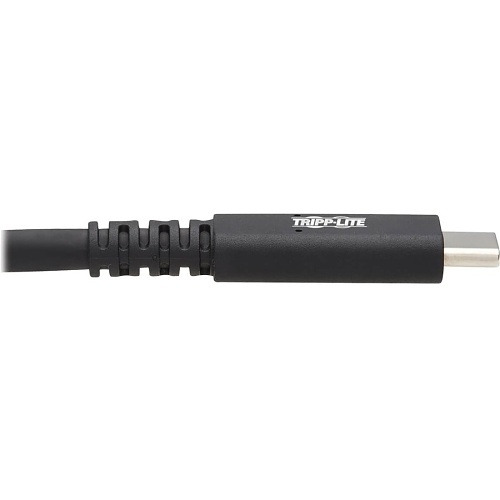

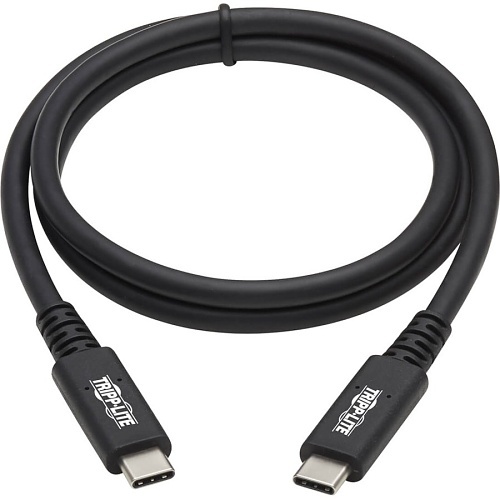

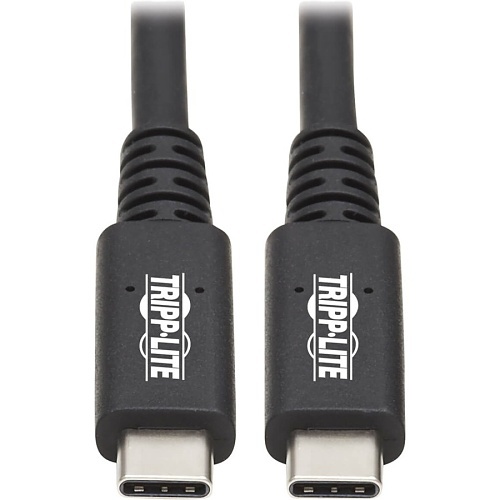

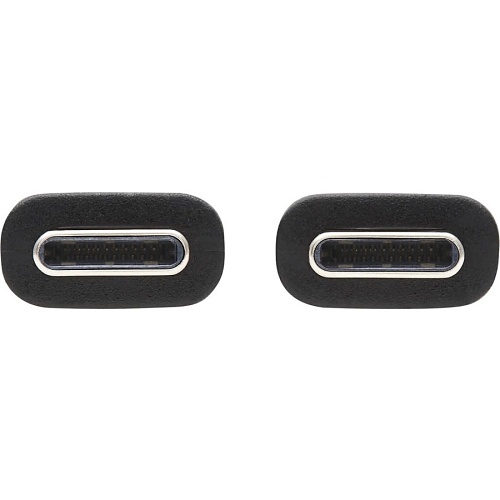

Eaton Tripp Lite U520-31N USB4 40Gbps USB-C to Male Cable, 2.6"
Eaton Tripp Lite U520-31N USB4 40Gbps USB-C to Male Cable, 2.6"
Eaton Tripp Lite U520-31N USB4 40Gbps USB-C to Male Cable, 2.6"
U520-31N | TC-U52031N
Please sign in to view pricing and availability and to add to cart.
Product Overview
USB4 Cable Streams Video and Downloads Data at 40 Gbps, 8x Faster Than USB 3.0
This USB4 40Gbps cable (M/M) transmits across two bidirectional lanes, supporting speeds up to 40 Gbps, which is eight times faster than USB 3.0. Unlike previous USB generations, the USB4 40Gbps cable has the ability to allocate resources. Instead of splitting video and data equally between its two lanes, the U520-31N allows the connected display as much bandwidth as it needs, while saving all remaining bandwidth for high-speed data transfers. This makes the cable perfectly suited for 4K or 8K video streaming and editing, as well as transferring large RAW video or CAD files.
Supports DisplayPort Alternate Mode for Unidirectional 80 Gbps Video Connections
By connecting a 4K or 8K display to a host device that supports DisplayPort Alt Mode 1.4, this cable can use both high-speed lanes to transmit 4K or even 8K video at 60 Hz in one direction at 80 Gbps maximum speed. The U520-31N supports a single 8K display or dual 4K displays at 60 Hz.
Backward Compatible with Legacy USB and Thunderbolt 3 Devices
Though both connected devices must support USB4 40Gbps for the cable to reach its full potential, the U520-31N is backward compatible with USB 3.x, USB 2.0 and Thunderbolt 3 devices. It connects two USB-C devices, including MacBooks, Chromebooks, Windows laptops, smartphones, external hard drives, tablets, docking stations and wall chargers. It is compatible with all USB-C and Thunderbolt 3 devices, enabling use in existing installations while preparing for future upgrades.
PD Charging Cable Keeps the Connected Notebook, Tablet or Other Device at Capacity
The U520-31N supports Power Delivery (PD) 3.0 charging of the connected PD Charging-compliant device. It carries power output up to 20V 5A (100W), which is sufficient for fast-charging and powering your MacBook or other mobile device.
Reversible USB-C Connectors Attach in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connectors plug into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time.
Main Features
- USB4 Cable with 40Gbps speed, 8x faster than USB 3.0
- Supports 8K video streaming at 60 Hz
- Compatible with USB-C and Thunderbolt 3 devices
- Power Delivery 3.0 for 100W fast charging
- Reversible USB-C Connectors for easy connection
- Backward compatible with USB 3.x and USB 2.0
- Ideal for 4K/8K video editing and large file transfers
- Supports DisplayPort Alt Mode for 80 Gbps video
General Information
Specifications
ADI Part Number TC-U52031N Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number U520-31N Product Model U520-31N Product Name USB4 40Gbps Cable (M/M)-USB-C, 8K 60 Hz, 100W PD Charging, Black, 31 in.(0.8 m) Product Series U520 Product Type Data Transfer Cable USB Version 4
Cable Type Thunderbolt 3 Connector Plating Nickel Contact Plating Gold Device Supported Chromebook, Dock, Docking Station, External Hard Drive, MacBook, Mobile Device, Notebook, PC, Smartphone, Tablet, Wall Charger Jacket Type VW-1
Data Transfer Rate 80 Gbit/s
Application/Usage Residential Cable Length 31" Color Black Jacket Material TPE
Limited Warranty 3-Year
Country of Origin VN Environmentally Friendly Yes Features Charging, Reversible, USB- Power Delivery (USB PD) Package Contents - U520-31N USB4 40Gbps USB-C Cable (M/M), 31 in. (0.8 m)
